Compilation of image annotations and environmental data of 7 years of monitoring of hydrothermal assemblages using the TEMPO ecological module (EMSO-Azores observatory)

Date 2022-03-31
Temporal extent 2012-07-23 -2019-06-10
Author(s) Van Audenhaege LoicORCID1, Matabos MarjolaineORCID1, Courant Valentin1, 3, Jaulin Emmanuel1, Raffault Clarisse1, 3, Le Goffic Léa1, 2, Drugmand Jonathan1, 4, Brind'Amour AnikORCID5, Laes AgatheORCID6, Sarradin Pierre-MarieORCID1, Sarrazin JozeeORCID1
Affiliation(s) 1 : Univ Brest, CNRS, Ifremer, UMR6197 BEEP, F-29280 Plouzané, France
2 : Université de Bretagne Occidentale, IUEM, Master Sciences de la Mer et du Littoral, F-29280, Plouzané, France
3 : La Rochelle Université, Faculté de Sciences et Technologies, Avenue Michel Crépeau, 17000, La Rochelle, France
4 : Université catholique de Louvain, Ecole de biologie, B-1348 Louvain-la-Neuve, Belgique
5 : DECOD (Ecosystem Dynamics and Sustainability), IFREMER, INRAE, Institut Agro, Nantes, France
6 : Ifremer, REM/RDT/LDCM, F-29280 Plouzané, France
DOI 10.17882/84672
Publisher SEANOE
Keyword(s) Mid-Atlantic Ridge, EMSO-Azores, Hydrothermal vent, Lucky Strike, Underwater imagery, TEMPO, Time series, MoMARSAT, Bathymodiolus azoricus, Eiffel Tower, Microbial mats, Segonzacia mesatlantica, Multidisciplinary, Deep-sea observatory, High-resolution monitoring, Long-term monitoring, Vent dynamics

The dataset contains annotations made on screenshots of video sequences collected by the TEMPO ecological module from 2012 to 2019 at a frequency from infra-daily to 10 days (base of the Eiffel Tower hydrothermal edifice, Lucky Strike, Mid-Atlantic Ridge, depth of 1695m). A long-term monitoring of the vent fauna dynamics was achieved with the files provided in this DOI that includes:

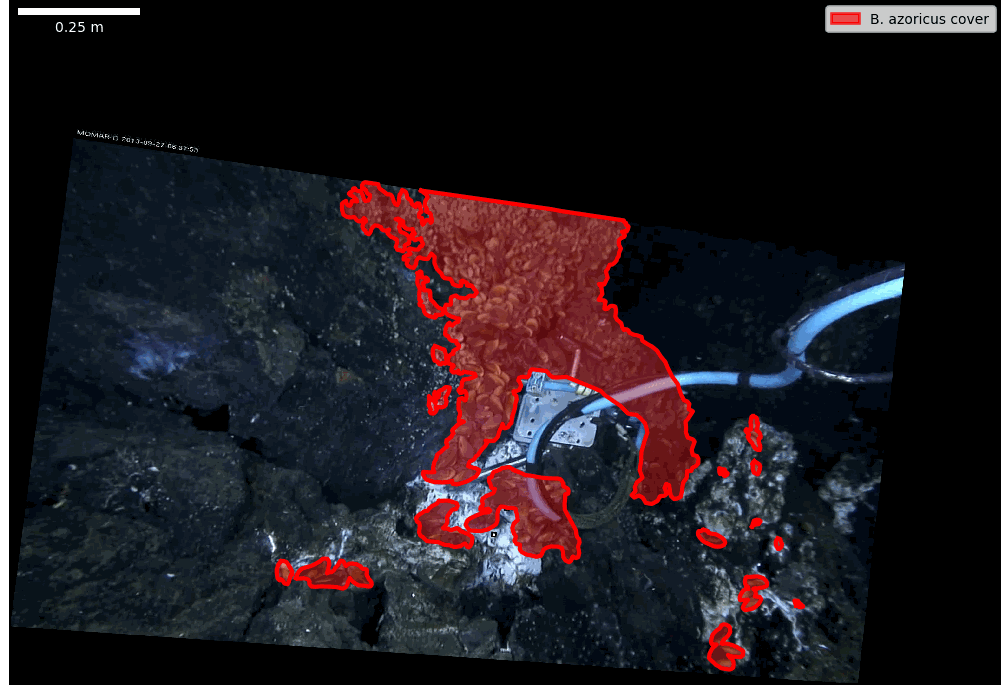

  • Annotations of the substratum and of the vent fauna (Bathymodiolus azoricus vent mussel) and microbial mats with polygons;

  • Annotations of the crab Segonzacia mesatlantica within images;

  • Count of unidentified zoanthids (manual and automatic; codes are provided).

Long-term monitoring of the vent habitat dynamics was made with the following environmental measurements also provided in the DOI:

  • Yearly measurements made with the CHEMINI and temperatures probes of the underwater vehicle since MoMARSAT2014

  • Positions and temperatures measured by iButton® probe in the TEMPO images

  • Linear regression-based modeling of the vent fluid dilution gradient in order to interpolate the iButton® temperatures over the full set of images

The dataset is accompanied with rasters allowing spatio-temporal continuity of the data by masking the portions of the images that do not overlap throughout the image time series.

The dataset is also accompanied with a read me to describe the structure of each data.

Licence CC-BY
Acknowledgements We acknowledge financial support from the EMSO France Research Infrastructure. This regional facility is included within the EU EMSO-ERIC ( The MoMARSAT cruises were funded by the French National Oceanographic Fleet, EMSO-Eric and data processing by the ANR Lucky Scales (ANR-14-CE02-0008-02). This work and LVA’s PhD thesis were supported by the European Union's Horizon 2020 research and innovation project iAtlantic under Grant Agreement No. 818123.
Sensor metadata

The TEMPO ecological module deployed from 2012 to 2019 is equipped with a SMOOVE camera and is part of the EMSO-Azores observatory.

Autonomous iButton® probes (Thermochron) deployed in the field of view from 2014 to 2019.

The underwater vehicle (ROV Victor6000/HOV Nautile) are equiped with a CHEMINI and temperature sensors.

File Size Format Processing Access
Tracking of the mussel individuals 13 KB CSV Processed data Open access
CHEMINI and temperature measurements made with the submersible during the MoMARSAT cruises 10 KB CSV Processed data Open access
Raster of the dilution gradient modeled by regressions of iButton(R) temperatures 2 MB TEXTE Processed data Open access
Delimitations of the field of view to perform spatio-temporal analyses of biological annotations 16 KB TEXTE Processed data Open access
Monthly temperatures and position of iButton(R) probes 25 KB CSV Processed data Open access
Compilation of the polygons annotated in images to monitor dynamcis of the substrata and vent fauna assemblages 17 MB CSV Processed data Open access
Document to help the reader to navigate through the different data files 21 KB DOC, DOCX Open access
Image combining the different fields of view recorded by the TEMPO ecological module from 2012 to 2019 1 MB IMAGE Raw data Open access
Positions of the annotation of the crab S. mesatlantica made in TEMPO images 135 KB CSV Processed data Open access
ImageJ scripts to extract the count of zoanthids from TEMPO images 4 KB .IMJ Open access
Zoanthid counts made in TEMPO image 1 MB CSV Processed data Open access
Top of the page

How to cite

Van Audenhaege Loic, Matabos Marjolaine, Courant Valentin, Jaulin Emmanuel, Raffault Clarisse, Le Goffic Léa, Drugmand Jonathan, Brind'Amour Anik, Laes Agathe, Sarradin Pierre-Marie, Sarrazin Jozee (2022). Compilation of image annotations and environmental data of 7 years of monitoring of hydrothermal assemblages using the TEMPO ecological module (EMSO-Azores observatory). SEANOE.
