ROV3G 2021 database: geophysical data on the continental shelf offshore Santo Stefano al Mare and San Lorenzo al mare, Liguria, Italy.

Date 2021
Author(s) Leclerc FrédériqueORCID1, Soubigou OlivierORCID2, Dano Alexandre1, Corradi NicolaORCID3, Clodic GuillaumeORCID2, Larroque ChristopheORCID1, Migeon Sébastien4, Morelli DaniloORCID3, Ratzov GueorguiORCID1, Azzoug Cherifa1, Boughanemi AlexandreORCID1, Bramardi Gilerik1, Gouet MaximeORCID1, Llorens Florian1, Palagonia SylvainORCID1, Papin LoïsORCID1
Affiliation(s) 1 : Université Côte d'Azur, Observatoire de la Côte d'Azur, IRD, CNRS, Géoazur, Sophia Antipolis, France
2 : Institut Français de Recherche pour l’Exploitation de la Mer, Direction de la Flotte, Unité de recherche Navires et Systèmes Embarqués, Ifremer Brest, ZI Pointe du Diable, 29280 Plouzané, France
3 : DISTAV, Department of Earth, Environment and Life Sciences, University of Genoa, Genoa, Italy; GNRAC, National Research Group for Coastal Environment, Genoa, Italy
4 : Sorbonne Université, France, CNRS, Observatoire de la Côte d'Azur, IRD, Géoazur, 250 rue Albert Einstein, Sophia Antipolis 06560 Valbonne, France.
DOI 10.17882/87801
Publisher SEANOE
Note Bathymetric grids were not calculated for navigation purposes
Keyword(s) Ligurian shelf, Bathymetry, Back-scatter, Continental shelf
Abstract

ROV3G scientific cruise is dedicated to the morpho-tectonic study of the ligurian shelf, through the acquisition of bathymetric data and optical images with HROV Ariane. This cruise took place on R/V Europe in october 2021, and constituted a pedagogic project for the students of  Master 3G Recherche, Géologie et Géophysique, of Université Côte d'Azur (UCA), attached to Géoazur lab. The M2 students were in charge of the scientific project, they determined the goals of the cruise, took part in the acquisition and interpretation of the data.

During the 3 days cruise, we acquired bathymetric data at shallow depth on the continental shelf offshore Santo Stefano al Mare and San Lorenzo al Mare, along the Ligurian coast. The bathymetry on the continental shelf exhibits morphologies that are probably related to the Flyschs formation that is outcroping onshore (Stani et al., 2010), and that is partially capped by late quaternary deposits (as identified in seismic data and interpreted in Bozzano et al., 2006). Ridges identified as paleo-shorelines (paleo-beaches?) have been investigated with HROV ariane whose navigation is also published here. Videos are available on video.ifremer.fr

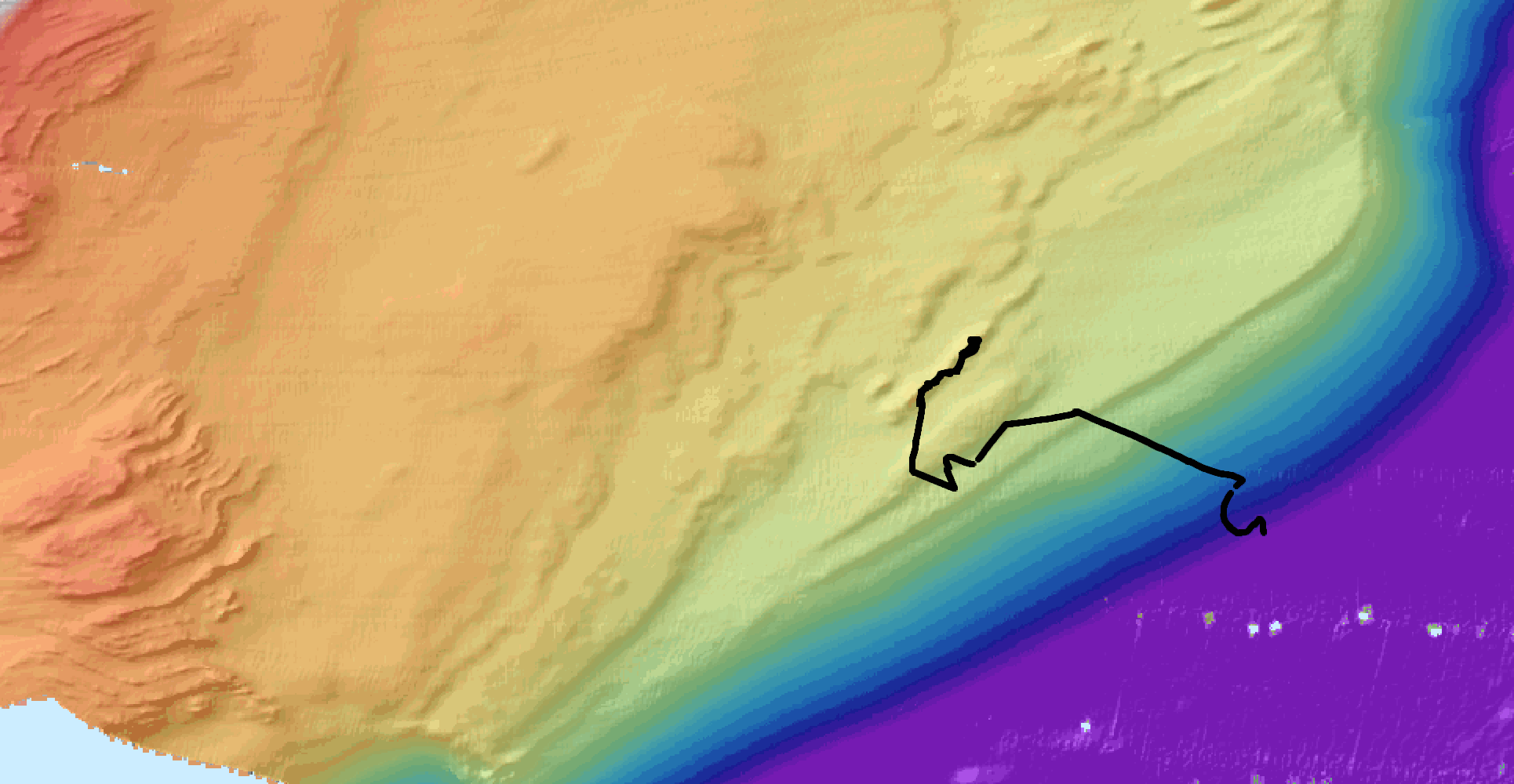

Here we publish two bathymetric grids at high-resolution, calculated from the ME70 multibeam echosounder of R/V Europe, using GLOBE software (Poncelet et al., 2022). The shallowest part of the plateau is gridded in a 5 m digital elevation model (DEM), while the entire survey area is gridded at 10m resolution. The back-scatter maps, gridded at 6 m, produced with Sonarscope software (Augustin et al., 2022), are also available (raw and compensated). All grids are in WGS84 (EPSG:4326).

The cruise report (written in french) is also available.

Licence CC-BY-NC-SA
Sensor metadata

ME70 multibeam echosounder

HROV Ariane

Data
File Size Format Processing Access
Cruise report 8 MB PDF Open access
Digital Elevation Model gridded at 5 m resolution 36 MB GRD (GMT NETCDF) Processed data Open access
Digital Elevation Model gridded at 10 m resolution 9 MB GRD (GMT NETCDF) Processed data Open access
Navigation of R/V Europe during bathymetric acquisition with ME70 echosounder 3 MB CSV Raw data Open access
Navigation of HROV Ariane during exploration with HD camera 197 KB CSV Open access
ME70 raw back-scatter data gridded at 6 m 8 MB TIF Raw data Open access
ME70 back-scatter data, compensated through Sonarscope processing, gridded at 6 m 8 MB TIF Processed data Open access
Top of the page

How to cite

Leclerc Frédérique, Soubigou Olivier, Dano Alexandre, Corradi Nicola, Clodic Guillaume, Larroque Christophe, Migeon Sébastien, Morelli Danilo, Ratzov Gueorgui, Azzoug Cherifa, Boughanemi Alexandre, Bramardi Gilerik, Gouet Maxime, Llorens Florian, Palagonia Sylvain, Papin Loïs (2021). ROV3G 2021 database: geophysical data on the continental shelf offshore Santo Stefano al Mare and San Lorenzo al mare, Liguria, Italy. SEANOE. https://doi.org/10.17882/87801
