Acoustic data from Kanarecup 2 cruise

Date 2022
Temporal extent 2021-05-06 -2021-05-11
Author(s) Habasque JeremieORCID1, Allain ValerieORCID2, Varillon David3, Vignon Damien3, Olu KarineORCID4
Affiliation(s) 1 : Institut de Recherche pour le Développement, UMR LEMAR, IRD de Bretagne, BP70 29280 Plouzané, FRANCE
2 : Pacific Community (SPC), 95 Promenade Roger Laroque BP D5 98848 Nouméa NOUVELLE-CALEDONIE
3 : Institut de Recherche pour le Développement, UAR IMAGO, Nouméa NOUVELLE-CALEDONIE
4 : Univ Brest, CNRS, Ifremer, UMR6197 BEEP (Biologie et Ecologie des Ecosystèmes marins Profonds), Plouzané, France
DOI 10.17882/87997
Publisher SEANOE
Keyword(s) ACOUSTICS, PACIFIC OCEAN, MICRONEKTON
Abstract

This dataset contains acoustic data collected with scientific echosounders around seamounts in the south of New-Caledonia during the Kanarecup cruise performed onboard the French R/V ALIS in 2021 in the framework of the program «KANADEEP».

Licence CC-BY-NC-SA
Acknowledgements We want to acknowledge R/V ALIS crew that made the surveys possible.
Sensor metadata

Continuous acoustic measurements were made with calibrated echosounders (Foote et al., 1987) Simrad EK60 connected to hull-mounted (3m below the waterline) transducers operating at four frequencies: 38, 70, 120 and 200 kHz. Data were acquired at a typical vessel speed of 8 knots with an average ping interval of 3 s. The pulse length was set at 1024 µs for all frequencies and transmit powers were of  2000, 600, 200, and 90 W for the six channels at 38, 70, 120 and 200 kHz, respectively. The water column was sampled down to depths of 800, 400, 250 and 120 m, respectively for those channels.

Acoustic data were scrutinized, corrected and analysed using the “Movies3D” software developed at the “Institut Français de Recherche pour l'Exploitation de la Mer” (Ifremer; Trenkel et al., 2009) combined with the French “Institut de Recherche pour le Développement” (IRD) open source tool “Matecho” (Perrot et al., 2018), developed in MATLAB.

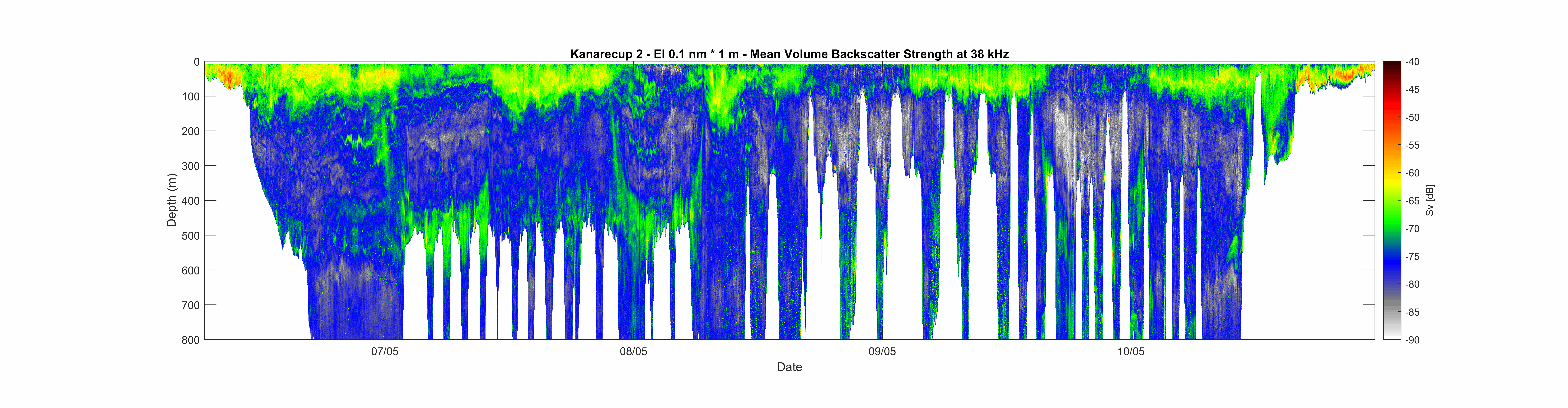

The near-field noise was removed (3 m deep from the transducer, that is 6 m deep from the surface) from the analysis; phantom bottom echoes were excluded and the bottom line was corrected manually. Echograms were cleaned by eliminating unwanted signals such as one impulsive noise, transient noise due to the interferences with other electronic devices or other sources. Background noise was estimated and subtracted using methods described by De Robertis and Higginbottom (2007). Echograms were scrutinized and manually cleaned. The acoustic nautical area scattering coefficient (NASC), an indicator of marine organisms biomass, and the acoustic volume backscattering strength (Sv in dB re 1m-1), an indicator of marine organisms density, were calculated. Data were echo-integrated onto 1 m high layers over 0.1 nmi ESDU (elementary sampling distance unit) with a -100 dB threshold, from 8 m down to 800 m depth. The data provided are the results of the echointegration processing.

Sensors metadata and variables are described in the report "ICES. 2016. A metadata convention for processed acoustic data from active acoustic systems. Series of ICES Survey Protocols SISP 4-TG-AcMeta. 48 pp".

Data
File Size Format Processing Access
538 MB NC, NetCDF Quality controlled data Access on demand until 2024-05-05
Top of the page

How to cite

Habasque Jeremie, Allain Valerie, Varillon David, Vignon Damien, Olu Karine (2022). Acoustic data from Kanarecup 2 cruise. SEANOE. https://doi.org/10.17882/87997
