(2024). Conductivity-Temperature-Depth profiles in Curaçao. SEANOE. https://doi.org/10.17882/103493
Copy this text
Conductivity-Temperature-Depth profiles in Curaçao
Here we present Conductivity-Temperature-Depth (CTD) observations of the leeward of the South Caribbean island of Curaçao. The data is used to characterize the heat content, stratification and turbulent length-scales of subsurface waters, near long-term monitoring stations of mesophotic coral reefs.

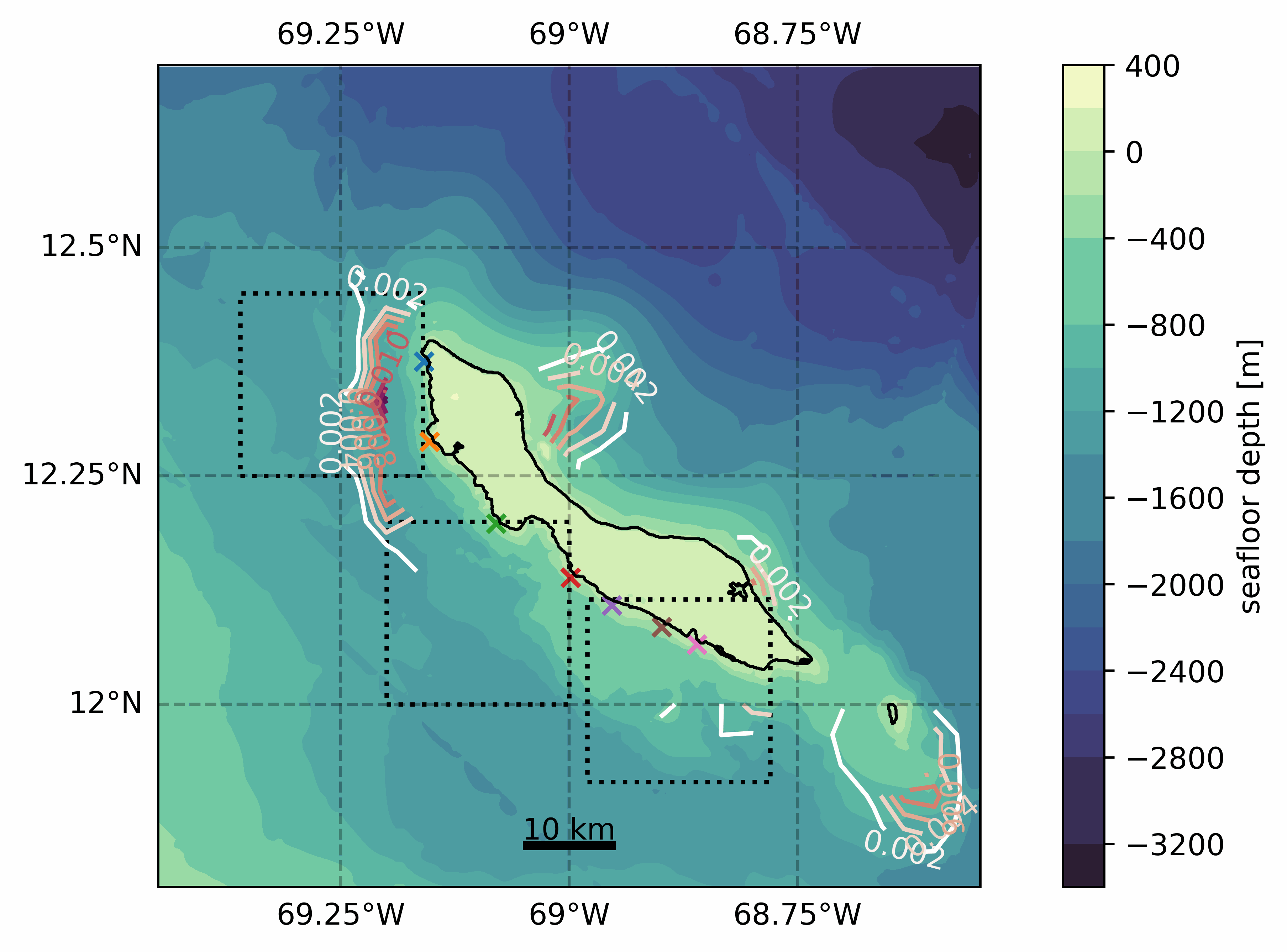

CTD profiles were collected at five locations, from April 12-25, 2023 in Curaçao. The sampling sites were offshore from the fringing reef, within 500m from long-term temperature monitoring sites: Playa Kalki, Boka Hulu, Coral Estate, Director's Bay and Oostpunt (https://github.com/pimbongaerts/monitoring). An RBRconcerto³ C.T.D instrument (RBR) equipped with dissolved oxygen (DO) profiled the water column using an electric fishing reel. Data were recorded at 2 Hz during 1 m.s-1 up- and down-casts, yielding a vertical resolution of ~0.5m. Data were averaged in 1m vertical bins.
Disciplines
Physical oceanography
Keywords
CTD, RBR, Profile
Location
12.474693N, 11.886736S, -68.554449E, -69.249334W
Devices
"instrument" :
"serial" : 210820,
"model" : "RBRconcerto³",
"fwtype" : 104,
"fwversion" : 1.147
"name" : "Conductivity",
"units" : "mS/cm",
"calibration" : {
"time" : "2022-05-05 18:29:14.000",
"C0" : 0.0068302294,
"C1" : 158.56512,
"C2" : 1.0,
"X0" : 2.8910532E-4,
"X1" : -1.3776786E-5,
"X2" : 6.0E-7,
"X3" : 0.0,
"X4" : 0.0,
"X5" : 14.984587,
"X6" : 10.0
"index" : 2,
"name" : "Temperature",
"units" : "Degrees_C",
"calibration" : {
"time" : "2022-05-02 15:56:44.000",
"C0" : 0.0035239758,
"C1" : -2.5040534E-4,
"C2" : 2.5268898E-6,
"C3" : -6.948246E-8
"index" : 3,
"name" : "Pressure",
"units" : "dbar",
"sensor" : "N009891",
"calibration" : {
"time" : "2022-05-02 19:51:52.000",
"C0" : -21.42448,
"C1" : 2369.8435,
"C2" : 30.17931,
"C3" : -31.183554,
"X0" : 10.0556,
"X1" : 0.031144958,
"X2" : -2.2005381E-4,
"X3" : -3.2015687E-6,
"X4" : -1.0183697E-4,
"X5" : 20.806616
"index" : 4,
"name" : "Dissolved O2 saturation",
"units" : "%",
"calibration" : {
"time" : "2022-05-13 04:00:00.000",
"C0" : 1301.1239,
"C1" : -2606.2322
"index" : 5,
"name" : "Sea pressure",
"units" : "dbar"
"index" : 6,
"name" : "Depth",
"units" : "m"
"index" : 7,
"name" : "Salinity",
"units" : "PSU"
"index" : 8,
"name" : "Speed of sound",
"units" : "m/s"
"index" : 9,
"name" : "Specific conductivity",
"units" : "uS/cm"
"index" : 12,
"name" : "Density anomaly",
"units" : "kg/m3"
"index" : 13,
"name" : "Dissolved O2 concentration",
"units" : ""
"sampling" :
"mode" : "CONTINUOUS",
"period" : "500"
"parameters" :
"atmpressure" : 10.1325,
"density" : 1.0281,
"altitude" : 0.0,
"temperature" : 0.0,
"pressure" : 10.1325,
"conductivity" : 42.914,
"salinity" : 35.0,
"spec_cond_coeff" : 0.0191,
"offsetfromutc" : 0.0
Data
| File | Size | Format | Processing | Access | |
|---|---|---|---|---|---|
CTD profiles 16-24, station Director's Bay, Curaçao | 2 Mo | NetCDF | Raw data | ||
CTD profiles 25-33, station Coral Estate, Curaçao | 873 Ko | NetCDF | Raw data | ||
CTD profiles 34-45, station Coral Estate, Curaçao | 1 Mo | NetCDF | Raw data | ||
CTD profiles 46-56, station Coral Estate, Curaçao | 954 Ko | NetCDF | Raw data | ||
CTD profiles 57-69, station Director's Bay, Curaçao | 1 Mo | NetCDF | Raw data | ||
CTD profiles 70-96, station Director's Bay, Curaçao | 2 Mo | NetCDF | Raw data | ||
CTD profiles 97-128, station Director's Bay, Curaçao | 2 Mo | NetCDF | Raw data | ||
CTD profiles 129-134, station Director's Bay, Curaçao | 548 Ko | NetCDF | Raw data | ||
CTD profiles 135-147, station Director's Bay, Curaçao | 1 Mo | NetCDF | Raw data | ||
CTD profiles 148-162, station Playa Kalki, Curaçao | 1 Mo | NetCDF | Raw data | ||
CTD profiles 163-185, station Boka Hulu, Curaçao | 1 Mo | NetCDF | Raw data | ||
CTD profiles 186-205, station Playa Kalki Curaçao | 1 Mo | NetCDF | Raw data | ||
CTD profiles 206-235, station Director's Bay, Curaçao | 2 Mo | NetCDF | Raw data | ||
CTD profiles 240-252, station Oospunt, Curaçao | 1 Mo | NetCDF | Raw data |
