Temperature (°C) and dissolved oxygen concentrations (µmol/l) data from the EMSO-Azores observatory, 2016-2017 (Tempo)

Date 2017
Temporal extent 2016-09-07 -2017-02-07
Author(s) Sarradin Pierre-MarieORCID1, Legrand JulienORCID1, Cannat Mathilde2
Affiliation(s) 1 : Ifremer, Institut Carnot EDROME, France
2 : CNRS, IPGP, France
DOI 10.17882/52131
Publisher SEANOE
Keyword(s) Mid-Atlantic Ridge, EMSO-Açores, Hydrothermal Vents, Lucky Strike, Eiffel Tower, Dissolved oxygen, Temperature, TEMPO, Time-series, MoMAR, MoMARSAT2016, Bathymodiolus azoricus assemblage

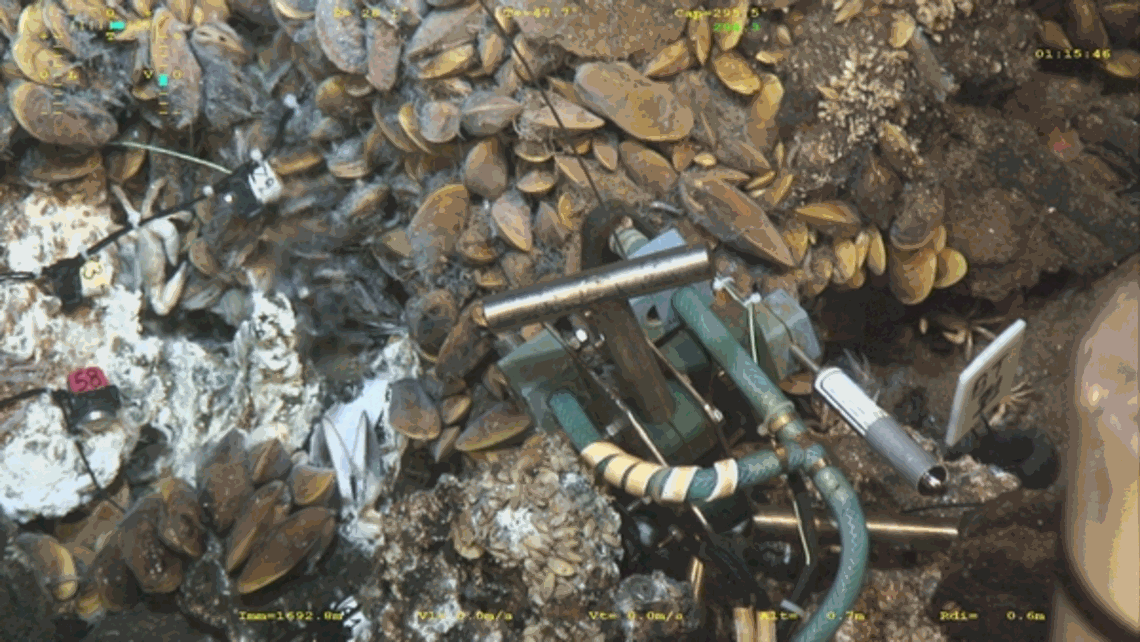

This dataset contains temperature (°C) and dissolved oxygen concentrations (µmol/l) (and the associated sensor raw data) acquired between September 2016 and February 2017 using an Aanderaa optode (model 4330, sensor head #2133, salinity setting 3.5%, uncorrected for pressure) The sensor. The sensor was positioned on a mussel bed at the base of the Tour Eiffel edifice (1695m depth). Data was acquired every 15 minutes. A two-point calibration at 0% and 100% saturation levels is performed at each maintenance cruise. The optode connected to the TEMPO ecological module is part of the SeaMoN East monitoring node.

Licence CC-BY
Utilisation EMSO data are published without any warranty, express or implied. The user assumes all risk arising from his/her use of EMSO data. EMSO data are intended to be research-quality and include estimates of data quality and accuracy, but it is possible that these estimates or the data themselves contain errors. It is the sole responsibility of the user to assess if the data are appropriate for his/her use, and to interpret the data, data quality, and data accuracy accordingly. EMSO welcomes users to ask questions and report problems to the contact addresses listed in the data files or on the EMSO web page.
Sensor metadata


  • Oxygen saturation (%)
  • Oxygen concentration (μmol/l)
  • Temperature (°C)


  • Regional node : Emso-Azores

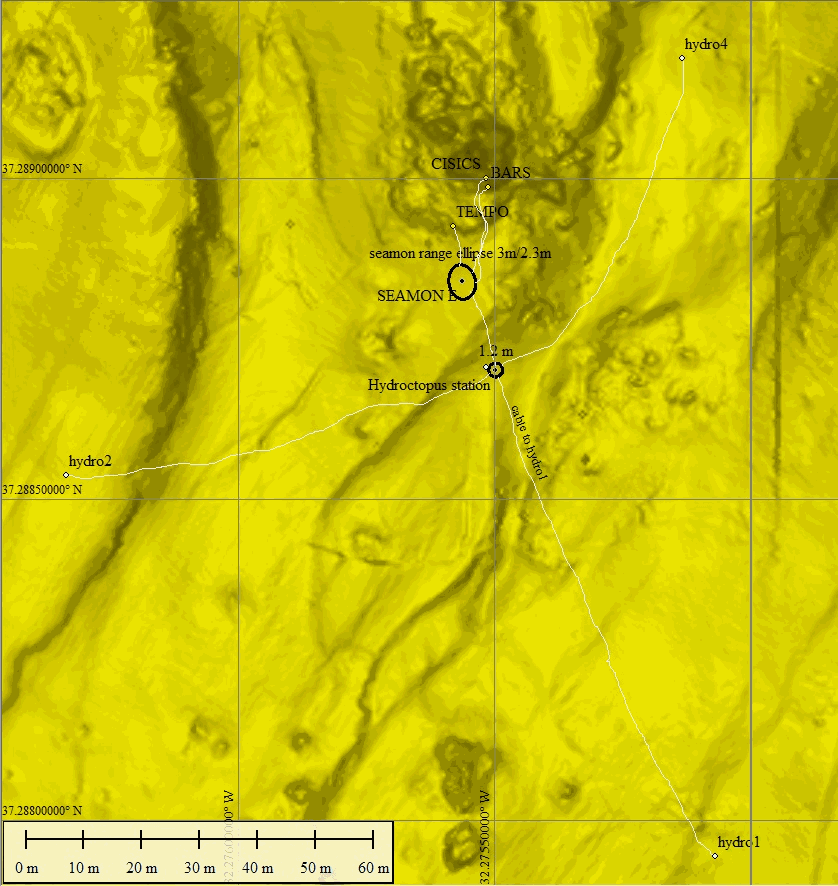

  • Site : Lucky Strike, Tour Eiffel
  • Node : SeaMoN East
  • Coordinates : 37.289 °N   32.275 °W
  • Depth : 1695 m



Operating parameters

  • Calibration : 2017-01-24
  • Salinity setting : 3.5%
  • Pressure correction : no
  • Sample rate : 15 minutes
  • Anti-fouling device : Micro chlorination

Sensor metadata

  • Type : Oxygen Optode
  • Model : 4330
  • Provider : Aanderaa Data Instruments Inc.
  • Serial number : 2184

Sensor configuration

  • Salinity setting: 0%
  • Pressure correction: no
  • Salinity compensation: no

Test and calibration

  • AANDERAA, test and specifications (March 2016)
  • Ifremer, Pressure qualification (Oct. 2016)
  • Ifremer, Calibration (May 2017)

Data management

  • Real time data transmission: No
  • Data storage in the Communication and storage unit (COSTOF2): Full
  • Data storage in the instrument: No


File Size Format Processing Access
52839.csv 1 MB CSV Raw data Open access
Top of the page

How to cite

Sarradin Pierre-Marie, Legrand Julien, Cannat Mathilde (2017). Temperature (°C) and dissolved oxygen concentrations (µmol/l) data from the EMSO-Azores observatory, 2016-2017 (Tempo). SEANOE. https://doi.org/10.17882/52131
