Experimental clay-laden density flow velocity and deposit data from the Eurotank laboratory

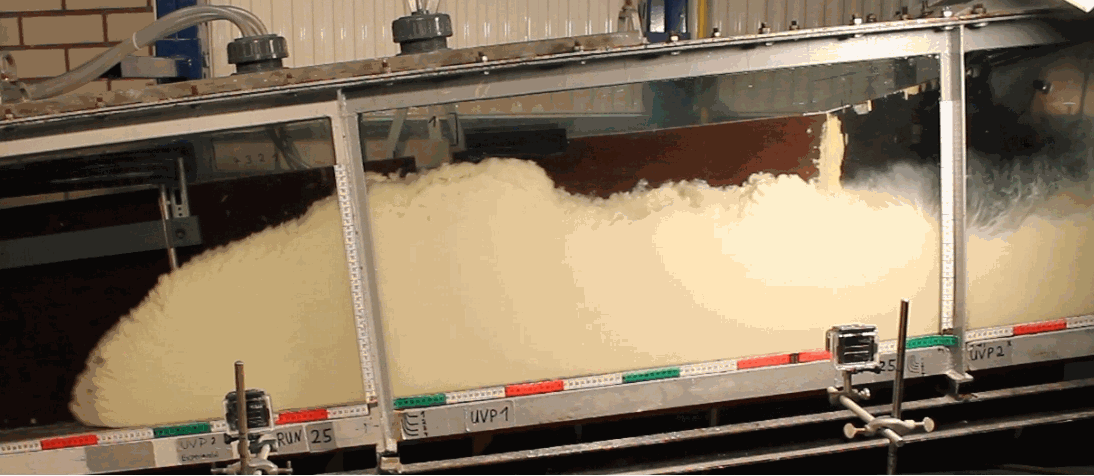

This dataset contains flume experiment data from a series of runs that were performed at the Eurotank laboratory of Utrecht university. It includes velocity data as well as photographs that were taken from the deposits emplaced by the density flows inside the flume. The flume was 3.7 m long, 0.22 m wide, and 0.5 m high with glass side walls. For the experiments, the slope was adjusted to 6, 8, and 9.5 degrees. Before the runs, mixtures composed of 1) sand, silt, clay, and water or, 2) sand, clay, and water, were prepared and stirred for approximately 30 minutes to 2 hours in a 0.45 mmixing tank and the flume was filled with tap water. The sediment volume concentration was varied between 9%, 15%, and 21% and contained  2/3 sand and 1/3 clay for the runs without silt and 1/3 sand, 1/3 silt, and 1/3 clay, for the runs including silt. The mixtures were then pumped with a discharge rate of 10 or 15 m3/h into the flume. Velocity data was obtained using two Ultrasonic Doppler Velocity Profiler probes (UVP Duo Mx, 1 MHz) which were placed at 0.7 m and 2.7 m distance from the inlet, at a height of 0.11 m above the bed, and with an abgle of 60 degree to the bed, facing up stream. This dataset was used in Hermidas et al., 2018 to classify clay-rich subaqueous density flow structures.

This dataset contains flume experiment data from a series of runs that were performed at the Eurotank laboratory of Utrecht university. It includes velocity data as well as photographs that were taken from the deposits emplaced by the density flows inside the flume. The flume was 3.7 m long, 0.22 m wide, and 0.5 m high with glass side walls. For the experiments, the slope was adjusted to 6, 8, and 9.5 degrees. Before the runs, mixtures composed of 1) sand, silt, clay, and water or, 2) sand, clay, and water, were prepared and stirred for approximately 30 minutes to 2 hours in a 0.45 mmixing tank and the flume was filled with tap water. The sediment volume concentration was varied between 9%, 15%, and 21% and contained  2/3 sand and 1/3 clay for the runs without silt and 1/3 sand, 1/3 silt, and 1/3 clay, for the runs including silt. The mixtures were then pumped with a discharge rate of 10 or 15 m3/h into the flume. Velocity data was obtained using two Ultrasonic Doppler Velocity Profiler probes (UVP Duo Mx, 1 MHz) which were placed at 0.7 m and 2.7 m distance from the inlet, at a height of 0.11 m above the bed, and with an abgle of 60 degree to the bed, facing up stream. This dataset was used in Hermidas et al., 2018 to classify clay-rich subaqueous density flow structures.

Disciplines

Marine geology

Keywords

flume experiments, clay-laden density flow, Eurotank, deposits, debrite, turbidite

Devices

Each Ultrasonic Doppler Velocity Profiler (UVP) probe emitted and received 32 bursts, followed by a dead time of approximately 10 ms before the burst sequence of the second probe. The duration of each burst was 5 µs. The time resolution of a burst sequence was 0.16 ms. The time between successive burst sequences of a single probe was 0.22 s. The thickness of a measurement bin along the z direction was 0.64 mm. The total duration of each flume measurement was approximately 1 min.

Data

FileSizeFormatProcessingAccess
Velocity data and photographs of the emplaced deposits
3 GoTEXTRaw data
How to cite
Hermidas Navid, Eggenhuisen Joris T., Silva Jacinto Ricardo, Luthi Stefan M., Toth Ferenc, Pohl Florian (2016). Experimental clay-laden density flow velocity and deposit data from the Eurotank laboratory. Seanoe. https://doi.org/10.17882/54834
In addition to properly cite this dataset, it would be appreciated that the following work(s) be cited too, when using this dataset in a publication :
Hermidas Navid, Eggenhuisen Joris T., Jacinto Ricardo Silva, Luthi Stefan M., Tóth Ferenc, Pohl Florian (2018). A classification of clay-rich subaqueous density flow structures. Journal of Geophysical Research: Earth Surface, -. https://doi.org/10.1002/2017JF004386
