Temperature and dissolved oxygen concentrations, data from the EGIM, EMSO-Azores observatory, 2017-2018

This dataset contains temperature and dissolved oxygen concentrations and the associated sensor raw data acquired between July 2017 and August 2018 on EMSO-Azores observatory by the EGIM. Dissolved oxygen concentration is one of the 7 core parameters monitored by the EGIM, EMSO Generic Instrumental Module.

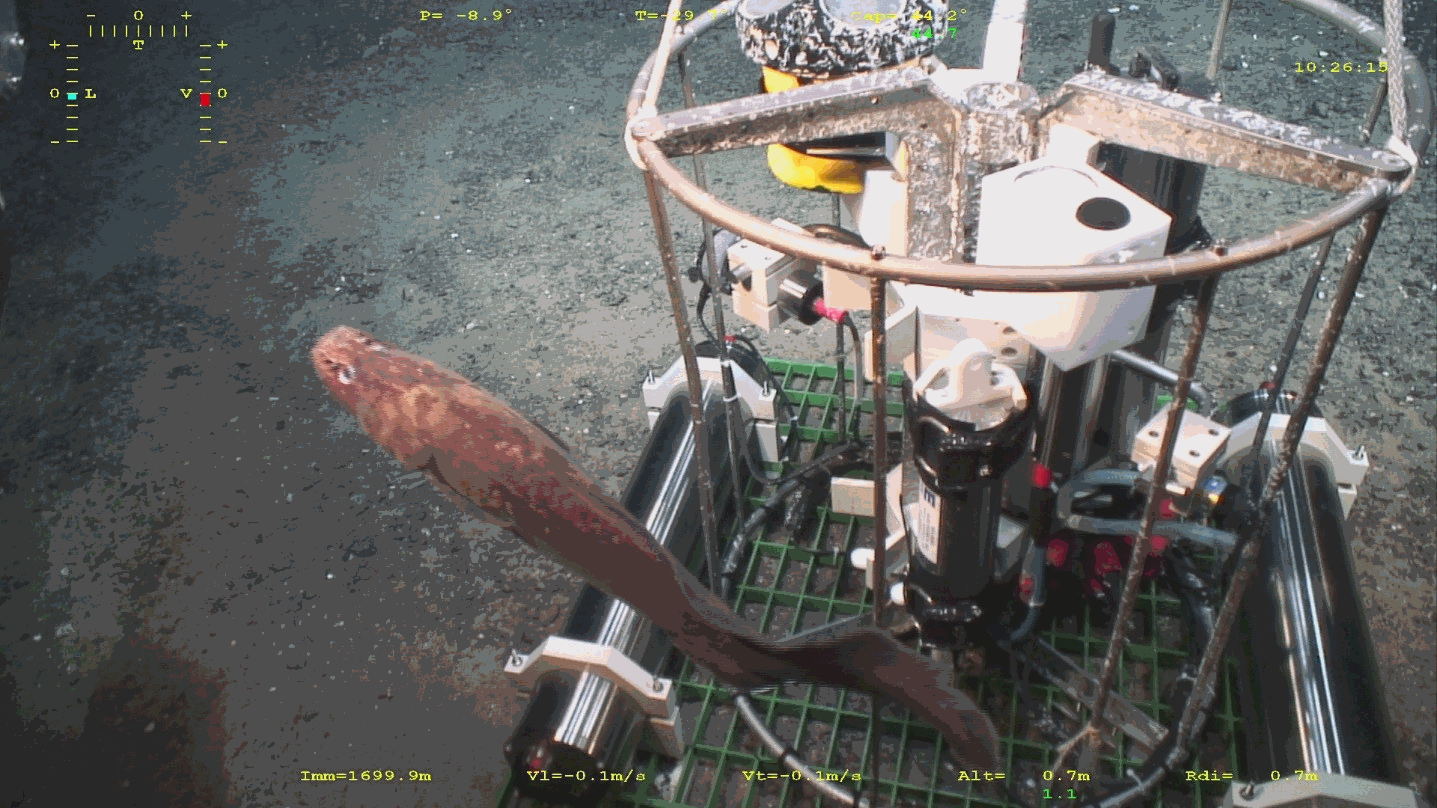

The EGIM prototype was deployed at Lucky Strike hydrothermal vent site, 25 m south west of the active edifice Tour Eiffel, to monitor local hydrodynamic variability and complement the data obtained by the numerous sensors set on this site: oceanographic mooring deployed south of the vent field, the multidisciplinary Seamon East node, autonomous current meters, array of temperature probes…

This dataset contains temperature and dissolved oxygen concentrations and the associated sensor raw data acquired between July 2017 and August 2018 on EMSO-Azores observatory by the EGIM. Dissolved oxygen concentration is one of the 7 core parameters monitored by the EGIM, EMSO Generic Instrumental Module.

The EGIM prototype was deployed at Lucky Strike hydrothermal vent site, 25 m south west of the active edifice Tour Eiffel, to monitor local hydrodynamic variability and complement the data obtained by the numerous sensors set on this site: oceanographic mooring deployed south of the vent field, the multidisciplinary Seamon East node, autonomous current meters, array of temperature probes…

Disciplines

Physical oceanography

Location

37.30134N, 37.2888S, -32.275618E, -32.27982W

Devices

Parameters

  • Oxygen saturation (%)
  • Oxygen concentration (μmol/l)
  • Temperature (°C)

Location

  • Regional node: Emso-Azores
  • Site: Lucky Strike
  • Node: EGIM
  • Coordinates: N37° 17' 19.61'' and W32° 16' 33.06''
  • Depth: 1700 m

Mooring

Lifting

Operating parameters

  • Measurement duration: 10 sec
  • Sampling period: 15 minutes
  • Anti-fouling device: No

Sensor metadata

  • Type: Oxygen Optode
  • Provider: Aanderaa Data Instruments Inc.
  • Model: AADI-3005214831 DW4831
  • Serial number: 606

Sensor configuration

  • Salinity setting: 0%
  • Pressure correction: no
  • Salinity compensation: no

Test and calibration

  • AANDERAA, test and specifications (March 2016)
  • Ifremer, Pressure qualification (Oct. 2016)
  • Ifremer, Calibration (May 2017)

Data management

  • Real time data transmission: No
  • Data storage in the Communication and storage unit (COSTOF2): Full
  • Data storage in the instrument: No

Data

FileSizeFormatProcessingAccess
Raw data (CSV format)
3 MoCSVRaw data
Sensor data sheet
502 KoPDF
Sensor test and specification
396 KoPDF
Pressure test report
697 KoPDF
Oxygen calibration report
1 MoPDF
Pressure qualification report
216 KoIMAGE
Raw data (NetCDF format)
371 KoNetCDFRaw data
How to cite
Sarradin Pierre-Marie, Legrand Julien, Moreau Bertrand, Lanteri Nadine, Cannat Mathilde (2018). Temperature and dissolved oxygen concentrations, data from the EGIM, EMSO-Azores observatory, 2017-2018. SEANOE. https://doi.org/10.17882/56501
