Marine growth effects on the hydrodynamical forces of a circular cylinder

Date 2018
Temporal extent 2013-10 -2013-10
Author(s) Gaurier BenoitORCID1, Germain GregoryORCID1, Facq Jean-Valery1, Bacchetti Thomas1, Baudet Lætitia2, Birades Michel2
Affiliation(s) 1 : IFREMER, Marine Structures Laboratory, Boulogne-sur-mer, France
2 : TOTAL S.A., DGEP/DTO/TEC/STR CSTJF, Pau, France
DOI 10.17882/58038
Publisher SEANOE
Abstract

An experimental database has been obtained in order to quantify the hydrodynamical drag and added-mass coefficients of a circular cylinder encrusted with rigid and large-size biofouling, such as coral. The tests have been carried out in the wave and current flume tank of IFREMER in Boulogne-sur-mer. The experimental working section is 4m wide by 2m deep and 18m long. The range of the upstream flow velocity used for these trials is between 0.15 and 1.55m/s, with a turbulence rate of 3%.

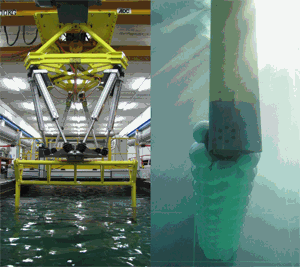

The experimental set-up consists of a 2 meters long cylinder supported by a frame, fixed under a motion generator system, by the use of a six-components load-cell, in order to measure the global forces on the assembly. The motion generator system is used to impose sinusoidal motions to the cylinder, fixed to the frame by the use of six-components load-cells at each extremity, in order to measure the forces only on the cylinder. Two different kinds of biofouling are studied and compared to a reference cylinder of 200mm diameter.

Trials have been carried out with current only, with imposed motions and with a combination of imposed motions and current. Results presented in the paper Effet des concrétions marines sur le comportement hydrodynamique de structures circulaires (Journées de l'Hydrodynamique, 2014) show that the hydrodynamic coefficients are from 1.5 to 4 times higher than those obtained for the reference cylinder. Differences between the two tested kinds of roughness are low and limited to the highest speeds and accelerations of motions.

Licence CC-BY-NC
Utilisation Data are published without any warranty, express or implied. The user assumes all risk arising from his/her use of data. Data are intended to be research-quality and include estimates of data quality and accuracy, but it is possible that these estimates or the data themselves contain errors. It is the sole responsibility of the user to assess if the data are appropriate for his/her use, and to interpret the data, data quality, and data accuracy accordingly. Authors welcome users to ask questions and report problems.
Data
File Size Format Processing Access
Readme 703 KB PDF Open access
Data 1 GB TEXTE Quality controlled data Open access
Top of the page

How to cite

Gaurier Benoit, Germain Gregory, Facq Jean-Valery, Bacchetti Thomas, Baudet Lætitia, Birades Michel (2018). Marine growth effects on the hydrodynamical forces of a circular cylinder. SEANOE. https://doi.org/10.17882/58038


In addition to properly cite this dataset, it would be appreciated that the following work(s) be cited too, when using this dataset in a publication :


Gaurier Benoit, Germain Gregory, Facq Jean-Valery, Baudet Laetitia, Birades Michel, Schoefs Franck (2014). Effet des concrétions marines sur le comportement hydrodynamique de structures circulaires. 14èmes journées de l'Hydrodynamique, Val de Reuil, 18-20 novembre 2014. https://archimer.ifremer.fr/doc/00247/35821/
