IAOOS winter hydrographic data during N-ICE 2015 North of Svalbard

Date 2019-03-05
Temporal extent 2015-01-15 -2015-03-19
Author(s) Villacieros Robineau Nicolas1, Calzas MichelORCID2, Guillot Antoine2, Savy Jean-Philippe3, Drezen Christine2, Garracio Magali4, Koenig ZoéORCID1, Sennechael NathalieORCID1, Durand IsabelleORCID1, Provost ChristineORCID1
Affiliation(s) 1 : Laboratoire LOCEAN-IPSL Sorbonne Université (UPMC, Univ. Paris 6)-CNRS-IRD-MNHN, Paris, France
2 : Division Technique de l'INSU/CNRS, Brest, France
3 : Laboratoire d'Etudes en Géophysique et d'Océanographie Spatiales (LEGOS), Toulouse, France
4 : Institut Polaire Francais Paul-Emile Victor (IPEV), Brest, France
DOI 10.17882/59516
Publisher SEANOE
Keyword(s) Arctic Ocean profiles, Temperature, Salinity, Dissolved Oxygen
Abstract

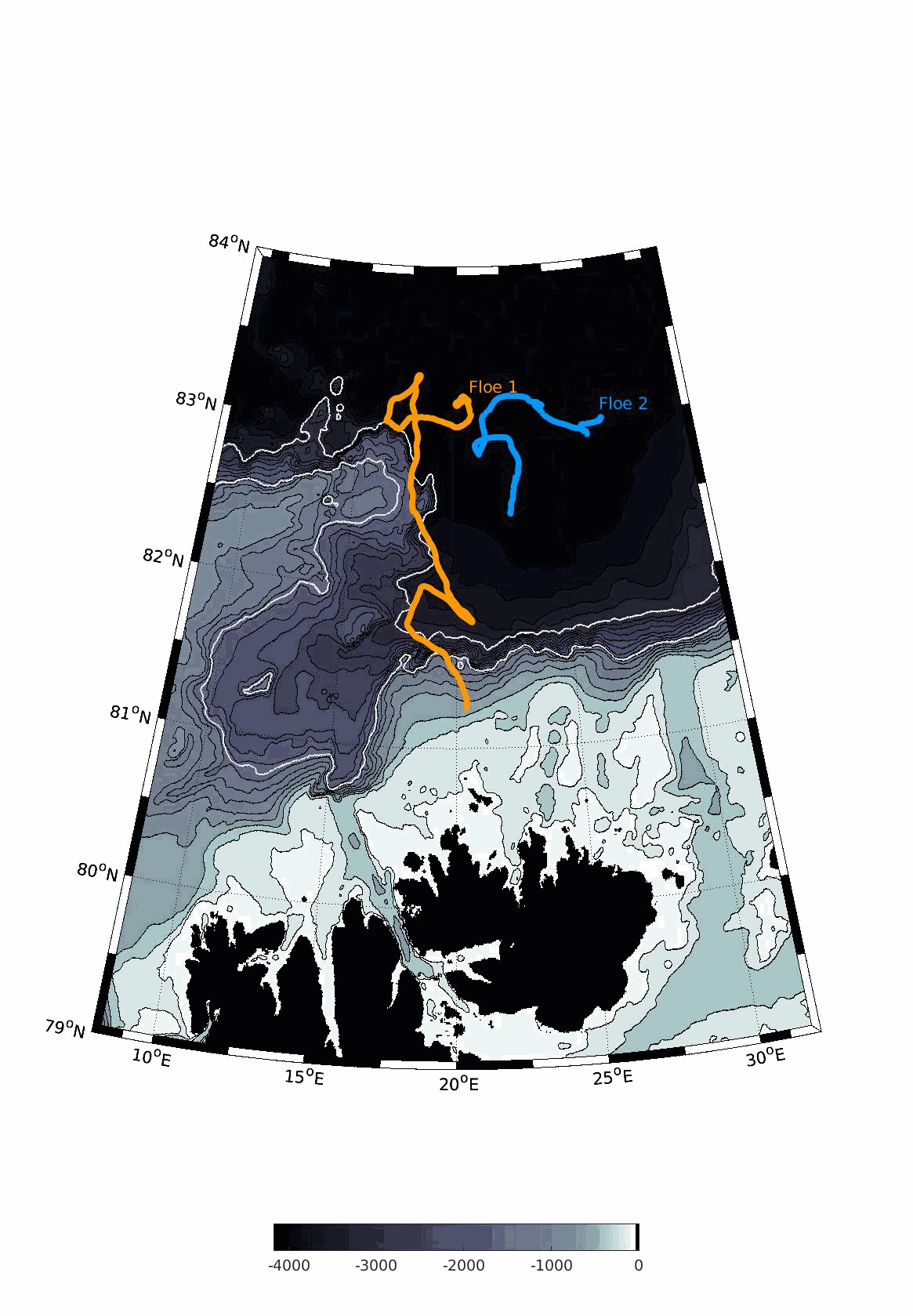

We gathered ocean profiles during the first two floes of the N-ICE2015 ice camp north of Svalbard with IAOOS ocean profilers. Between January and March 2015, four ocean profilers were deployed: two below a full IAOOS platform (500 m long cable) during floe 1, two on an 800 m long instrumented line in a tent‐covered testing‐hole during floe1 and floe 2.

The ocean profilers, from French manufacturer NKE (PROVOR SPI), carried a Seabird SBE41CP CTD (Conductivity, Temperature, Depth) with an Aanderaa 4330 optode for dissolved oxygen (DO). The profilers were set to perform two profiles a day from 500 m upward (800 m from testing hole) starting at 6 am and 6 pm. They provided the first winter data in the region with a total of 138 profiles during floe 1 (January 15- February 21) with 62, 50, and 26 profiles for IAOOS7, IAOOS8, and IAOOS 9, respectively and 16 profiles during floe 2 (February 24 - March 19- IAOOS 11 from testing hole).

Following quality control, we retain all the temperature profiles and remove 1% of the salinity profiles. Finally, the accuracy is estimated to be 0.002°C in temperature, and 0.02 g/kg in salinity. Several profiles are missing or incomplete because of high drift speeds (> 0.4 m s−1) impeding the ascent of the profiler.

There are no bottle DO measurements during Floe 1 to calibrate the DO data. DO accuracy is estimated comparing the deep values of DO concentration (rather stable at 500m) between the three profilers. A difference of 3 μmol L−1 is observed between IAOOS 8 and 9, and IAOOS 7. An offset of 3 μmol L−1 is then applied to the oxygen data from IAOOS7 and the accuracy of the data is estimated to be at ±3 μmol L−1.

The vertical resolution of the processed CTD data is 1 dbar in the upper 400 dbars, 5 dbars from 400 to 550 dbars and 10 dbars from 550 to 850 dbars. The vertical resolution in dissolved oxygen is 2 dbars over all depths.

Licence CC-BY-NC
Acknowledgments Equipment development and participation the N-ICE2015 Ice camp were funded under EQUIPEX IAOOS (Ice Atmosphere Ocean Observing System) (ANR-10-EQPX-32-01).
Sensor metadata

On IAOOS7 IAOOS 8 IAOOS9 and IAOOS11  plaforms, the ocean profiler was a PROVOR SPI (from French manufacturer NKE) equipped with a Seabird SBE41 CTD (Conductivity, Temperature, Depth) and a dissolved oxygen (DO) Aandera 4330 optode.



Data
File Size Format Processing Access
IAOOS7 profiler CTD data from N-ICE 2015 campaign North of Svalbard 1 MB NC, NetCDF Processed data Open access
IAOOS7 profiler DO data from N-ICE 2015 campaign North of Svalbard 649 KB NC, NetCDF Processed data Open access
IAOOS8 profiler CTD data from N-ICE 2015 campaign North of Svalbard 1 MB NC, NetCDF Processed data Open access
IAOOS8 profiler DO data from N-ICE 2015 campaign North of Svalbard 649 KB NC, NetCDF Processed data Open access
IAOOS9 profiler CTD data from N-ICE 2015 campaign North of Svalbard 747 KB NC, NetCDF Processed data Open access
IAOOS9 profiler DO data from N-ICE 2015 campaign North of Svalbard 477 KB NC, NetCDF Processed data Open access
IAOOS11 profiler CTD data from N-ICE 2015 campaign North of Svalbard 461 KB NC, NetCDF Processed data Open access
IAOOS11 profiler DO data from N-ICE 2015 campaign North of Svalbard 305 KB NC, NetCDF Processed data Open access
Top of the page

How to cite

Villacieros Robineau Nicolas, Calzas Michel, Guillot Antoine, Savy Jean-Philippe, Drezen Christine, Garracio Magali, Koenig Zoé, Sennechael Nathalie, Durand Isabelle, Provost Christine (2019). IAOOS winter hydrographic data during N-ICE 2015 North of Svalbard. SEANOE. https://doi.org/10.17882/59516
