Measurements in the wake of an undulating membrane tidal energy converter

Date 2020-04
Temporal extent 2018-02 -2018-02
Author(s) Träsch MartinORCID1, 2, Gaurier BenoitORCID2, Germain GregoryORCID2
Affiliation(s) 1 : EEL Energy, France
2 : Ifremer, France
DOI 10.17882/73226
Publisher SEANOE
Abstract

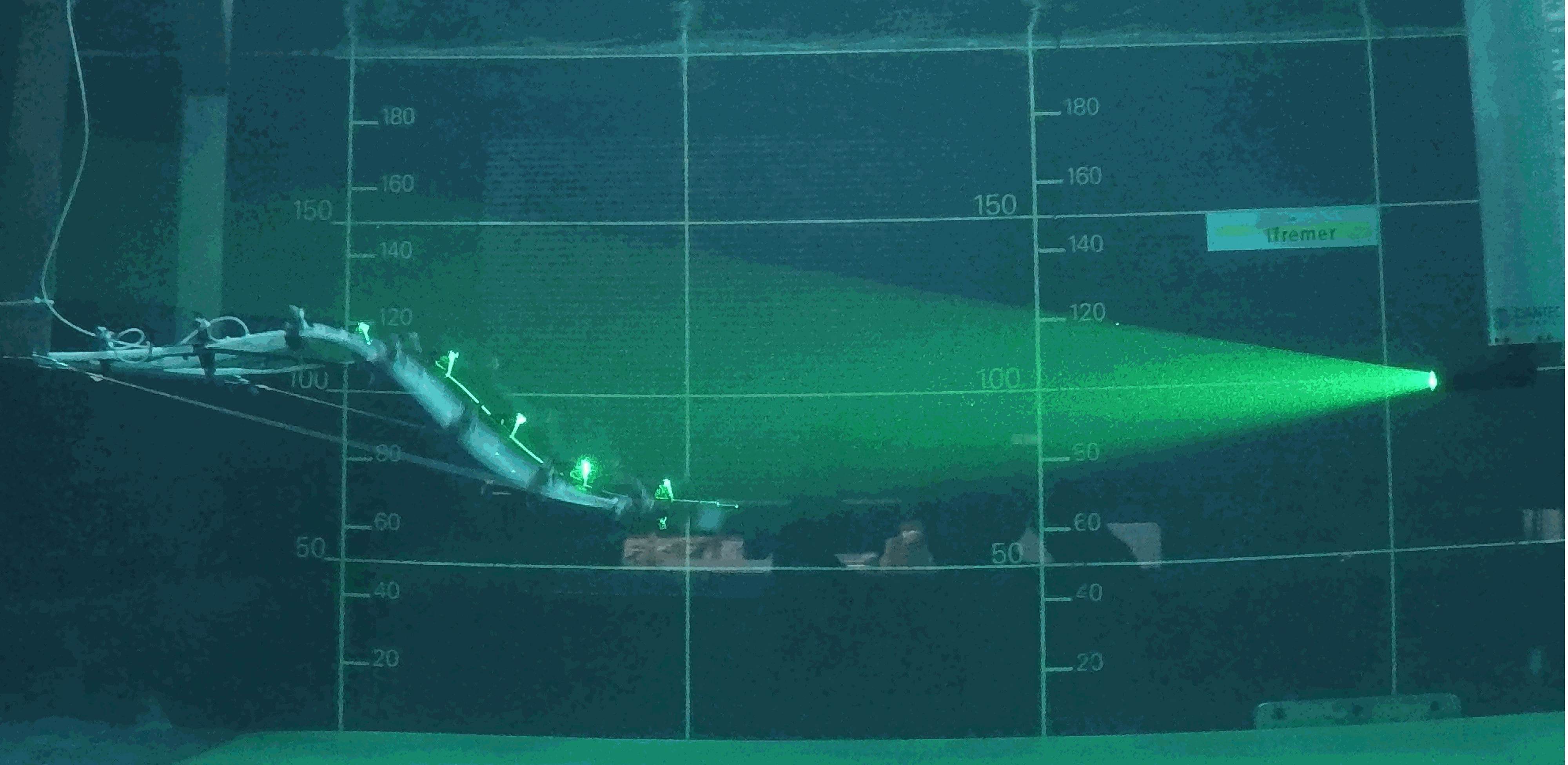

The tidal energy converter studied here is based on the fluid-structure interactions that occur between a flexible membrane and an axial flow, resulting in an undulating motion that can be used to harvest energy. Its wake is experimentally characterized from two-dimensional Particle Image Velocimetry (PIV) measurements. PIV is synchronized with a motion tracking system that gives information on trajectory and power conversion. Wake measurement gives access to velocity deficit, turbulence intensity and vorticity. Three configurations are tested in order to identify the influence of the main adjustment parameters.

Licence CC-BY-NC
Utilisation Data are published without any warranty, express or implied. The user assumes all risk arising from his/her use of data. Data are intended to be research-quality and include estimates of data quality and accuracy, but it is possible that these estimates or the data themselves contain errors. It is the sole responsibility of the user to assess if the data are appropriate for his/her use, and to interpret the data, data quality, and data accuracy accordingly. Authors welcome users to ask questions and report problems.
Acknowledgements This work was supported by the French Environment and Energy Management Agency (ADEME), Eel Energy SAS and the MET-CERTIFIED project, receiving funding from the Interreg 2 Seas programme 2014-2020, co-funded by the European Regional Development Fund under subsidy contract N° 2S01-020.
Data
File Size Format Processing Access
ReadMe 2 MB PDF Open access
Dataset 2 GB MAT Quality controlled data Open access
Top of the page

How to cite

Träsch Martin, Gaurier Benoit, Germain Gregory (2020). Measurements in the wake of an undulating membrane tidal energy converter. SEANOE. https://doi.org/10.17882/73226


In addition to properly cite this dataset, it would be appreciated that the following work(s) be cited too, when using this dataset in a publication :


M. Träsch, A. Déporte, S. Delacroix, G. Germain, B. Gaurier, J-B. Drevet. (2020). Wake characterization of an undulating membrane tidal energy converter. Submitted to Applied Ocean Research.
