Airborne laser scanning derived sea surface height datasets in the Gulf of Finland (10.05.2018)

Date 2020-10-04
Temporal extent 2018-05-10
Author(s) Varbla SanderORCID1, Ellmann ArtuORCID1, Delpeche-Ellmann Nicole2
Affiliation(s) 1 : Department of Civil Engineering and Architecture, Tallinn University of Technology, Tallinn, Estonia
2 : Department of Cybernetics, Tallinn University of Technology, Tallinn, Estonia
DOI 10.17882/76491
Publisher SEANOE
Note The dataset consists of computed grid files (Gridded_SSH.zip) in ESRI ASCII format and profiles (Computed_SSH_profiles.txt). Note that the measurements time (in UTC) is included in the profiles file.
Keyword(s) airborne laser scanning, sea surface height
Abstract

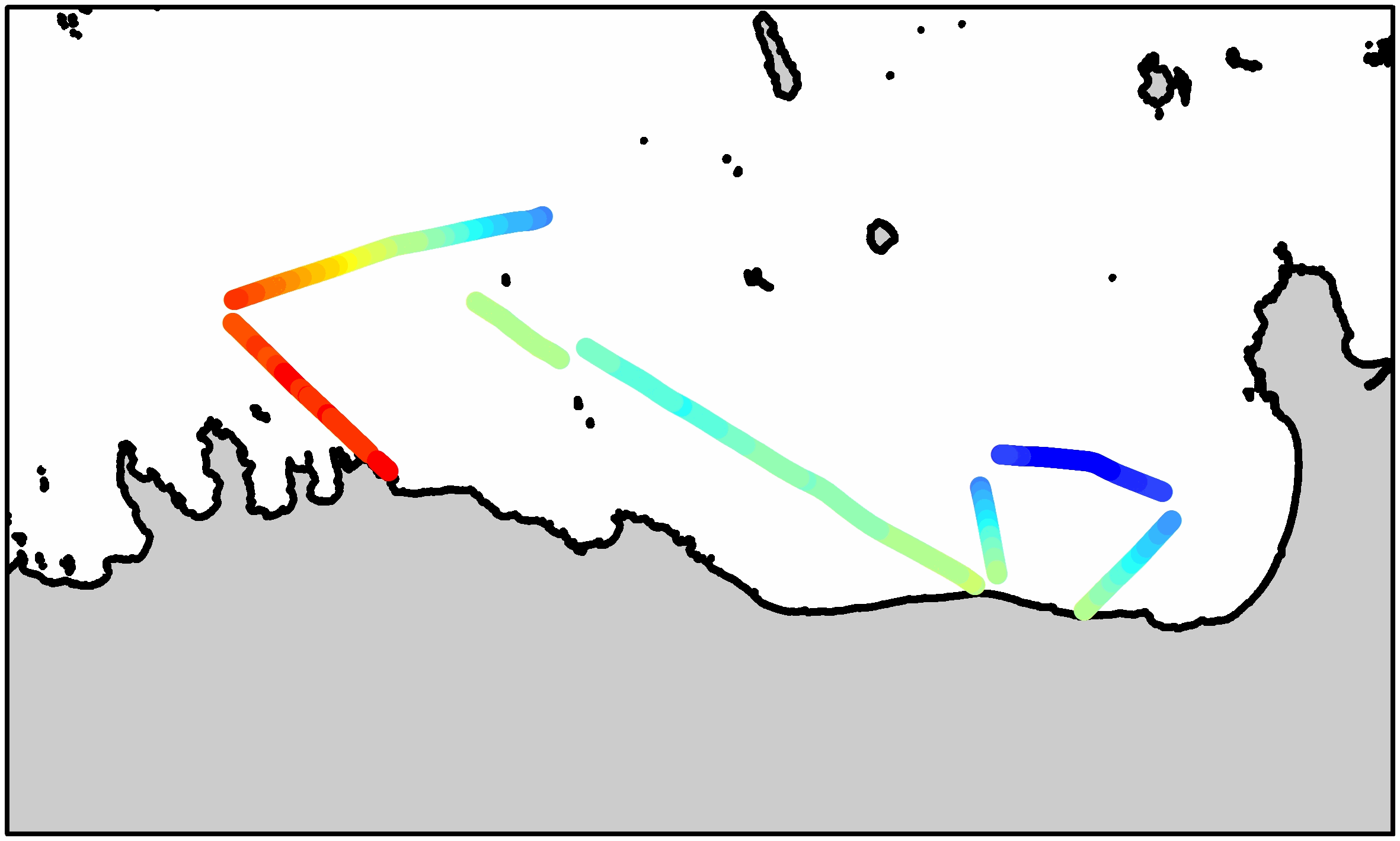

A marine airborne laser scanning (ALS) survey was performed on 10.05.2018 in the Gulf of Finland. An inverse distance weighted interpolation was employed to reconstruct the raw instantaneous sea surface heights as 1×1 m resolution grids, representing the high-frequency component. Alternatively, a 2D moving average low-pass filter was employed to determine the low-frequency component.

Licence CC-BY
Acknowledgments Grünthal, E. from the Estonian Land Board is thanked for providing the coordinated airborne laser scanning point clouds.
Sensor metadata

RIEGL VQ-1560i LiDAR Scanning System (operating at wavelength 1064 nm and pulse repetition rate 1 MHz) was used to acquire the airborne laser scanning data.

Data
File Size Format Processing Access
Computed_SSH_profiles.txt 132 KB TEXTE Processed data Open access
Gridded_SSH.zip 2 GB ASC Processed data Open access
Top of the page

How to cite

Varbla Sander, Ellmann Artu, Delpeche-Ellmann Nicole (2020). Airborne laser scanning derived sea surface height datasets in the Gulf of Finland (10.05.2018). SEANOE. https://doi.org/10.17882/76491
