Ocean glider observations in Greater Cook Strait, New Zealand

Date 2020-10-08
Temporal extent 2015-11-28 -2018-03-05
Author(s) O'Callaghan JoanneORCID1, Elliott Fiona2
Affiliation(s) 1 : NIWA, National Institute of Water and Atmospheric Research, New Zealand
2 : University of Bergen, Norway
DOI 10.17882/76530
Publisher SEANOE
Keyword(s) ocean glider, submesoscale, fronts, plumes, new zealand
Abstract

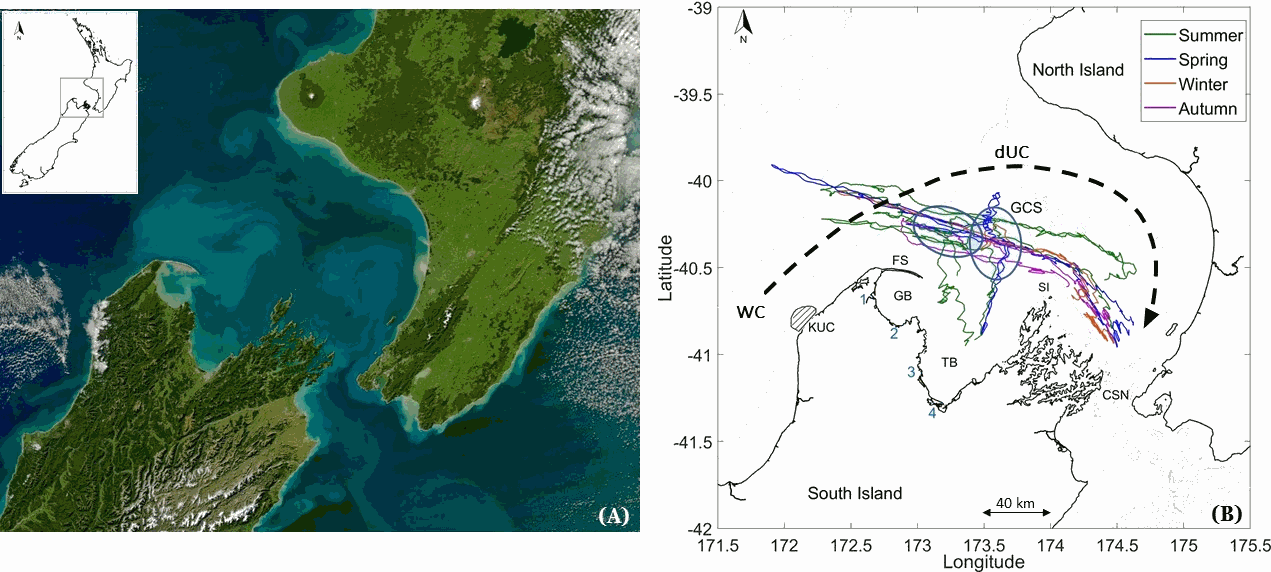

Continuous, long-duration and high resolution hydrographic sampling from gliders have enabled the evaluation of variability in density structure of submesoscale features in a New Zealand shelf sea. Glider sampling allows for: 1) minimal disturbance of upper stratification and 2) horizontal and temporal spacing between profiles to be typically less than one kilometer and 30 minutes depending on the profile depth. Seven glider surveys were completed from 2015 to 2018. The average glider track spanned 132 40o75S, 174o49E to 39o91S, 171o90E. In each survey, the glider transverses from east to west and back to its deployment location. For surveys 3, 4, 6, 9 and 11, the glider was deployed closer to the Cook Strait Narrows. As the glider would spend multiple days trying to overcome strong currents due to strong tidal fluctuations near the Narrows, deployments for surveys 12 and 15 were from Tasman Bay to maximise observations across the Greater Cook Strait shelf sea.

This study used Teledyne Webb Research Slocum G2 gliders equipped with Seabird CTD sensor, Aanderaa Oxygen Optode and Wet Labs Environmental Characterization Optics (ECO) puck, that measured chlorophyll-a fluorescence, backscatter (at 470, 532, 660 and 700 nm) and chromophoric dissolved organic matter (CDOM). Temperature, conductivity, and pressure data were sampled at 0.5 Hz, and subsequently processed to remove spikes. The accuracy within calibration range of temperature and conductivity were +/-0.002oC and +/-0.0003 S m-1, respectively. Glider data processing was completed using the SOCIB glider toolbox (https://github.com/socib/glider_toolbox; Troupin et al. (2015)). Glider data processing includes salinity lag correction for the thermal lag error for the un-pumped CTD unit. Data were averaged in vertical bins of 1 m.

Licence CC-BY-NC
Acknowledgements These observations were funded by Phase I Sustainable Seas National Science Challenge and NIWA Strategic Science Investment Fund in the Coasts and Oceans Centre Programme, Ocean Flows and Productivity (2015-2018).
Sensor metadata

Teledyne Webb Research Slocum G2 gliders (Manaia, #517 and Betty, #591) equipped with Seabird CTD sensor, Aanderaa Oxygen Optode and Wet Labs Environmental Characterization Optics (ECO) puck, that measured chlorophyll-a fluorescence, backscatter (at 470, 532, 660 and 700 nm) and chromophoric dissolved organic matter (CDOM).



Data
File Size Format Processing Access
Level 2 Slocum ocean glider observations 79 MB NC, NetCDF Processed data Open access
Top of the page

How to cite

O'Callaghan Joanne, Elliott Fiona (2020). Ocean glider observations in Greater Cook Strait, New Zealand. SEANOE. https://doi.org/10.17882/76530
