Milos Shallow Water Hydrothermal System: AUV seafloor photomosaics (July 2019 fieldwork)

Date 2019-07
Author(s) Puzenat Valentine1, Gracias NunoORCID4, Martelat Jean-EmmanuelORCID3, Escartin JavierORCID2, Garcia RafaelORCID4
Affiliation(s) 1 : Institut de Physique du Globe de, Paris, France
2 : Laboratoire de Géologie, CNRS UMR 8538, Ecole Normale Supérieure de Paris, France
3 : Laboratoire de Géologie, U. de Lyon, France
4 : Computer Vision and Robotics Group, University of Girona, Spain
DOI 10.17882/77669
Publisher SEANOE
Note AUV seafloor photomosaics from the shallow-water Milos hydrothermal field, acquired at Paleochori and Spathi Bays inJuly 2019
Keyword(s) Hydrothermal system, Greece, photomosaics, Hydrothermal flux, volcanism, Hydrothermalism, seafloor mapping
Abstract

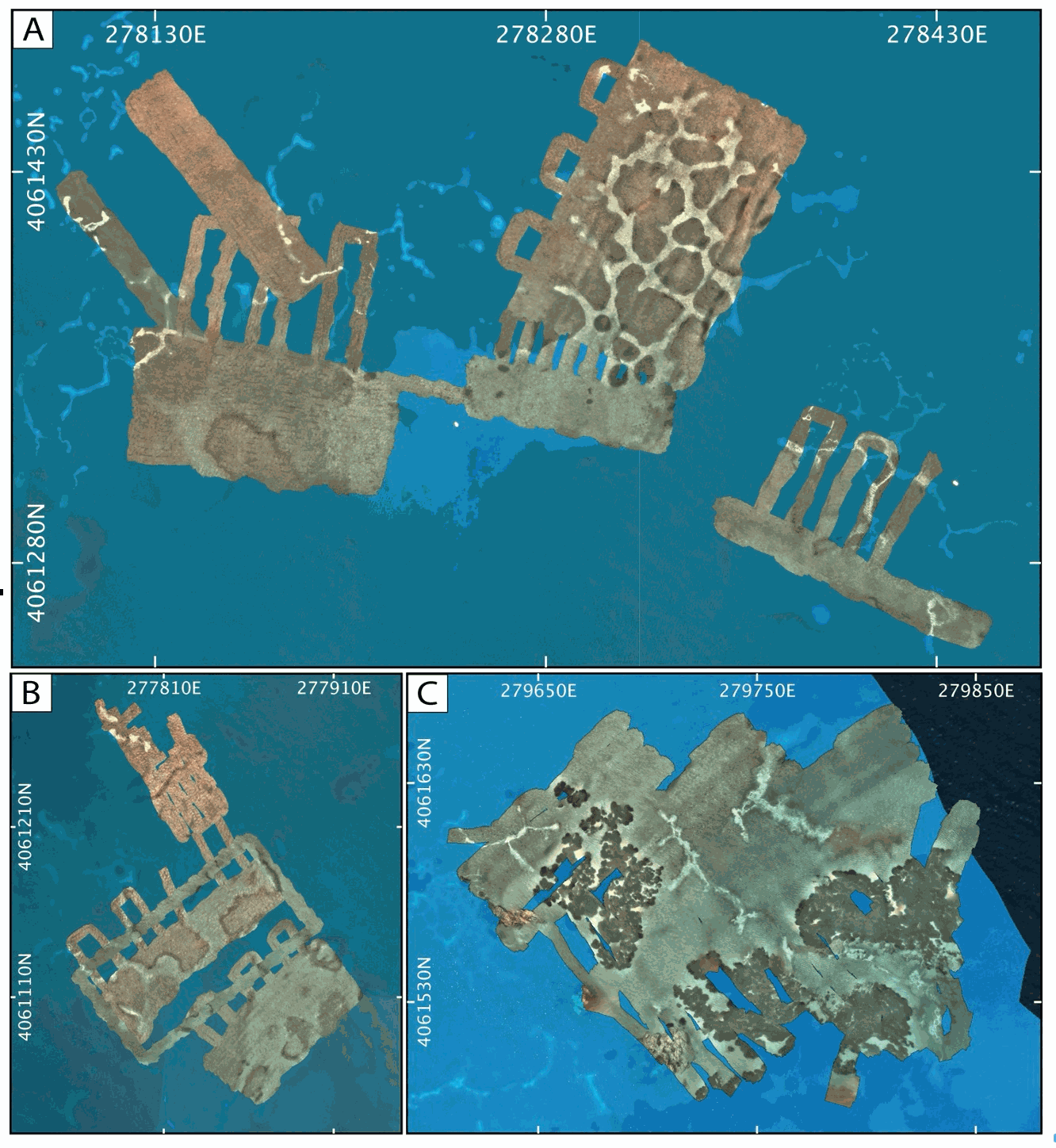

AUV photomosaics of the seafloor at the shallow-water Milos hydrothermal system. Photomosaics were acquired with the Sparus II (Iqua, Girona) AUV and constructed from vertically acquired still images. Images were acquired in July 2019 at the Paleochori and Spathi Bays. Photomosaics are provided as geotiffs (UTM Zone 35). This dataset includes both original photomosaics, that show distortions due to AUV navigation drift, and georeferenced photomosaics, that have been registered with the associated drone photomosaics at these same areas.

Licence CC-BY-NC-ND
Utilisation Not for commercial use. While these data is open access, we encourage users to contact the authors for information regarding their use.
Acknowledgements This work was partially funded by projects INSU-SYSTER to J.-E. Martelat and J. Escartin, with additional support from IPGP, U. Lyon, an U. Bergen.
Sensor metadata

AUV Sparus II (Iqua, Girona, Spain). Imagery acquired with a vertically mounted camera. Photomosaics were generated by renavigation and blending (processing by U. of Girona).

Data
File Size Format Processing Access
AUV seafloor photomosaics acquired at the Milos shallow water hydrothermal site (July 2019): Spathi Bay and Paleochori Bay. Photomosaics are GEOTIFFS projected in UTM zone 35 (un and re-projected) 6 KB TEXTE Open access
Excel table of correspondence between mosaics in original projection, and georeferenced relative to drone imagery 9 KB XLS, XLSX Open access
Original, unprocessed geotiffs of AUV photomosaics at Paleochori and Spathi Bays (Milos shallow water hydrothermal system), acquired with Asparus II AUV (Iqua, Girona). UTM zone 35N. 2 GB TIF Raw data Open access
Processed geotiffs of AUV photomosaics at Paleochori and Spathi Bays (Milos shallow water hydrothermal system), acquired with Asparus II AUV (Iqua, Girona), and co-registered with drone photomosaics. 2 GB TIF Processed data Open access
Top of the page

How to cite

Puzenat Valentine, Gracias Nuno, Martelat Jean-Emmanuel, Escartin Javier, Garcia Rafael (2019). Milos Shallow Water Hydrothermal System: AUV seafloor photomosaics (July 2019 fieldwork). SEANOE. https://doi.org/10.17882/77669


In addition to properly cite this dataset, it would be appreciated that the following work(s) be cited too, when using this dataset in a publication :


Puzenat Valentine, Escartin Javier, Martelat Jean-Emmanuel, Barreyre Thibaut, Bauer Sven Le Moine, Nomikou Paraskevi, Gracias Nuno, Allemand Pascal, Antoniou Varvara, Coskun Omer, Garcia Rafael, Grandjean Philippe, Jørgensen Steffen Leth, Magí Lluís, Mandalakis Manolis, Orsi William, Polymenakou Paraskevi, Schouw Anders, Vallicrosa Guillem, Vlasopoulos Othonas (2021). Shallow-water hydrothermalism at Milos (Greece): Nature, distribution, heat fluxes and impact on ecosystems. Marine Geology, 106521-. https://doi.org/10.1016/j.margeo.2021.106521
