The acceleration data before and after the collision of drifted test body with a concrete wall due to a tsunami wave

Date 2016-06-27
Temporal extent 2016-06-27 -2016-06-28
Author(s) Inoue TetsunoriORCID1, 4, Oguri Kazumasa2, Suga Hisami2, Suzuki Kojiro1, Prochazka Zdenek3, Nakamura Takashi4, Kurisu Akane5
Affiliation(s) 1 : Port and Airport Research Institute, 3-1-1 Nagase, Yokosuka 239-0826, Japan
2 : Japan Agency for Marine-Earth Science and Technology, Yokosuka, Kanagawa, Japan
3 : National Institute of Technology, Oita College, Oita, Oita, Japan
4 : Department of Transdisciplinary Science and Engineering, Tokyo Institute of Technology, 4259, Nagatsuta-cho, Midori-ku, Yokohama, Kanagawa 226-8503, Japan
5 : 3-7-10, Akatutumi, Setagayaku, Tokyo, Japan
DOI 10.17882/78736
Publisher SEANOE
Keyword(s) tsunami wave, collision impact, drifting castaway, surge flow, bore flow
Abstract

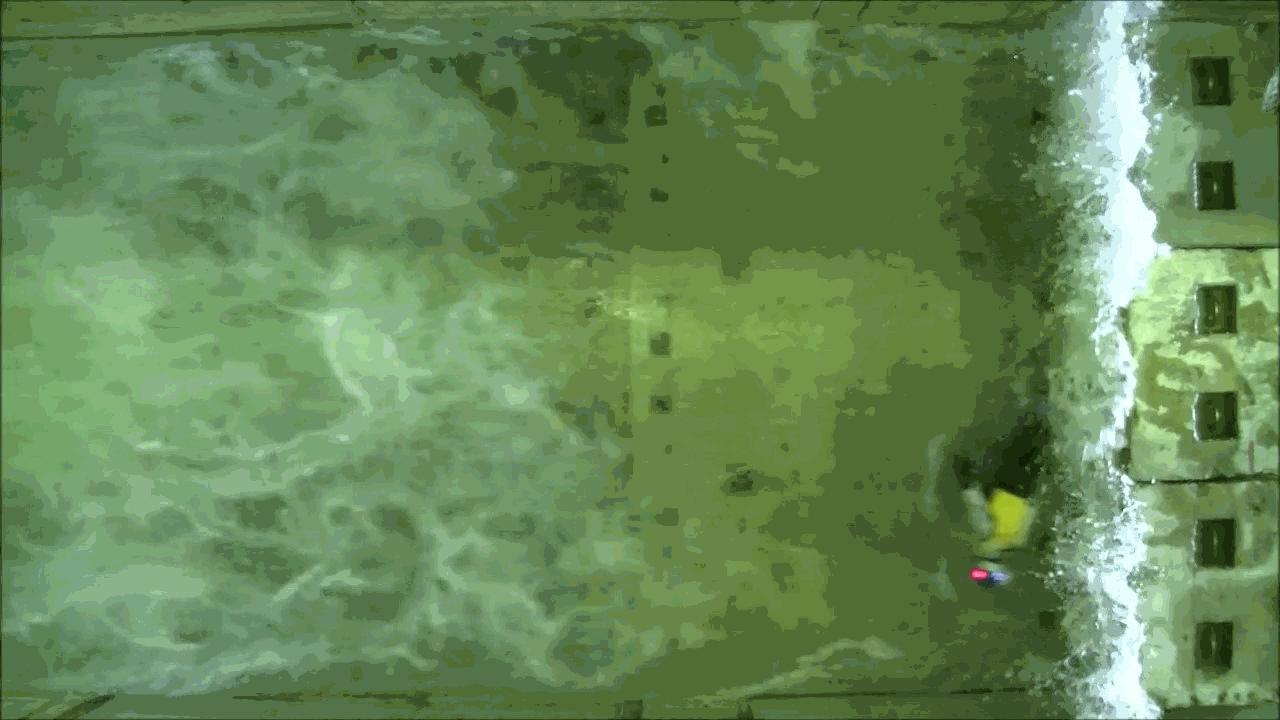

Although most fatalities in tsunami-related disasters are conjectured to be a result of drowning, injury risk owing to collision with other floating debris or fixed buildings has not been studied sufficiently. In this study, the impact force corresponding to the collision of a concrete block and drifting test body in a tsunami wave was experimentally investigated. The experiments were conducted using the Large Hydro-Geo Flume in the Port and Airport Research Institute, Yokosuka, Japan. The flume has length, width, and depth of 184 m, 3.5 m, and 12 m, respectively, with a piston-type wave-generator. In the experiment, a soft polyvinyl chloride (PVC) dummy and a PVC pipe with lids filled with water were employed as test bodies. Two acceleration sensors were attached to the head and ankle of the KM, and one sensor of the same type was attached at the top of the PVC pipe to investigate the impact of collisions.

Licence CC-BY-NC-ND
Acknowledgements We thank the staff of the Maritime Structures Research Group, Port and Airport Research Institute (PARI), for their help with the experiments. This study was financially supported by a Japan Society for the Promotion of Science (JSPS) Grant-in-Aid for Scientific Research (KAKENHI) (B) (16H03147).
Sensor metadata

Two acceleration sensors (SysCom Corp., AccStick6) were attached to the test body.

Data
File Size Format Processing Access
Time series of acceleration before and after the collision 914 KB XLS, XLSX Quality controlled data Open access
Top of the page

How to cite

Inoue Tetsunori, Oguri Kazumasa, Suga Hisami, Suzuki Kojiro, Prochazka Zdenek, Nakamura Takashi, Kurisu Akane (2016). The acceleration data before and after the collision of drifted test body with a concrete wall due to a tsunami wave. SEANOE. https://doi.org/10.17882/78736


In addition to properly cite this dataset, it would be appreciated that the following work(s) be cited too, when using this dataset in a publication :


Inoue Tetsunori, Oguri Kazumasa, Suga Hisami, Suzuki Kojiro, Prochazka Zdenek, Nakamura Takashi, Kurisu Akane, Mosa Ahmed Mancy (2021). Large-scale experiment to assess the collision impact force from a tsunami wave on a drifting castaway. PLOS ONE, 16(2), e0247436-. https://doi.org/10.1371/journal.pone.0247436
