Torpedo boat wreck (Mediterranean, 43.124N;6.523E): Imagery and 3D model

Date 2021
Author(s) Arnaubec Aurelien1, Raugel Ewen1
Affiliation(s) 1 : IFREMER, Ctr Mediterranee, Unité Systemes Marins,La Seyne sur mer, France
2 : Department of Geosciences, Ecole Normale Supérieure de Paris, France
DOI 10.17882/79028
Publisher SEANOE
Note Imagery and 3D textured model of a torpedo boat wreck off-the southern French Mediterranean coast. Image processing for the 3D model was carried out with the Matisse software (ref Github to come). Dataset released as part of a publication by Arnaubec et al. (submitted to Computers and Geosciences).
Keyword(s) Shipwreck, 3D model, Archaeology, underwater mapping, seafloor mapping
Abstract

Abstract

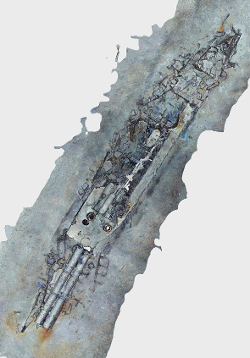

Torpedo boat wreck off-the southern French Mediterranean coast (43.124°N;6.523°E), at a water depth of ~476 m. This battle ship sank in 1903 (https://www.postenavalemilitaire.com/t11913-torpilleur-059-1881-1903) and the wreck is is ~20 m long and 3 m wide, raising ~2 m above the surrounding seafloor. This shipwreck was surveyed using the HROV Arianne in 2016, deployed from N/O L’Europe, and equipped with a vertical electronic still camera. Two datasets are provided. First, the survey imagery, that consists of 442 images (jpeg format) and an associated navigation file in dim2 format (torpdo_boat_imagery). Second, a 3D textured model of the site (obj format), together with the a kml file for georeferencing, and a geotiff orthomosaic (torpedo_boat_model). This dataset is one of several sets released with a paper by Arnaubec et al. (submitted to Computer and Geosciences) presenting the Matisse image processing software, and the 3DMetrics Visualization and analysis software (ref Github to come).

Arnaubec, A., J. Escartín, J. Opderbecke, M. Matabos, N. Gracias, submitted, Underwater 3D terrain reconstruction from video or still imagery: Processing and exploitation software (MATISSE \& 3DMETRICS), Computers and Geosciences

Licence CC-BY-ND
Acknowledgements This cruise was funded by the French National Oceanographic Fleet.
Sensor metadata

HOV Arianne and electronic still camera

Data
File Size Format Processing Access
3D textured scene of torpedo boat shipwreck, from HROV Arianne imagery 527 MB OBJ Processed data Open access
Still images acquired with HROV Arianne during survey of torpedo boat shipwreck (442, JPEG format) and associated navigation file (dim2) 2 GB IMAGE Raw data Open access
Top of the page

How to cite

Arnaubec Aurelien, Raugel Ewen (2021). Torpedo boat wreck (Mediterranean, 43.124N;6.523E): Imagery and 3D model. SEANOE. https://doi.org/10.17882/79028


In addition to properly cite this dataset, it would be appreciated that the following work(s) be cited too, when using this dataset in a publication :


Arnaubec, A., J. Escartín, J. Opderbecke, M. Matabos, N. Gracias (2021). Underwater 3D terrain reconstruction from video or still imagery: Processing and exploitation software (MATISSE and 3DMETRICS). Computers and Geosciences, Submitted.
