High Frequency Radar data visualization (Copernicus Marine Service)

Date 2021-06-02
Author(s) Rotllan Garcia PazORCID1
Author(s) CMEMS In Situ Thematic Assembly Center
Affiliation(s) 1 : SOCIB, Balearic Islands Coastal Observing and Forecasting System
DOI 10.17882/80874
Publisher SEANOE
Keyword(s) High Frequency Radars, Python, Radials, Totals, Notebook

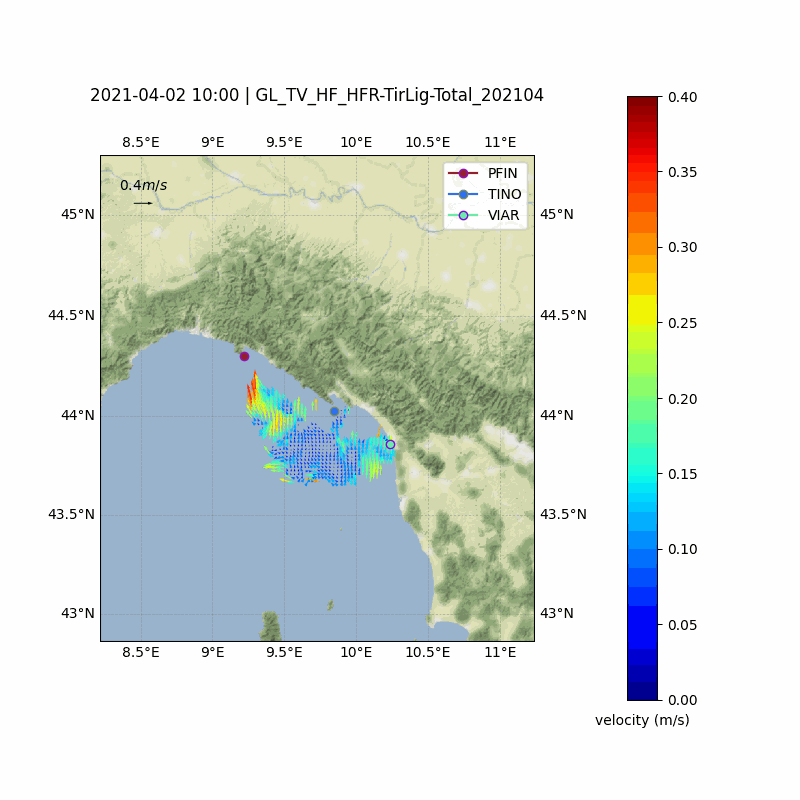

Python code snippets illustrating how to visualize High Frequency Radar data. This material was first published and shared trough github for it to be used in the frame of the SICOMAR 2021 Summer School and it can be either downloaded or ran online trough the binder project. The available netCDF files containing High Frequency Radar observations have been downloaded from the Copernicus Marine Service (CMEMS) product catalog, in particular, from the products dedicated to currents procured by the In Situ Thematic Assembly Center (In Situ TAC). The python code snippets included in the repository are applicable to both radial and total files dsitributed by the Copernicus Marine Service, covering the plotting of the radial sites, coverage, availability contours, velocity vector fields, time serie extraction at a given point and computation of performance metrics. Feedback from the European High Frequency Radar Node (EU HFR Node) was critical in its development. Users are encourage to propose changes over the present content by issuing pull requests in the aforementioned repository or contacting the authors.

Licence CC-BY
Utilisation Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER D
Acknowledgements 2021 Sicomar HFR summer school, European HFR node (euhfrnode@azti.es), Copernicus Marine Service and CMEMS In Situ TAC
Sensor metadata

High Frequency Radar systems integrated in the Coperncius Marine Service.



File Size Format Processing Access
Gitlab 2021-06-02 snapshot 100 MB Python Open access
Top of the page

How to cite

Rotllan Garcia Paz (2021). High Frequency Radar data visualization (Copernicus Marine Service). SEANOE. https://doi.org/10.17882/80874
