Marinet 2 Fixed Oscillating Water Column Wave Energy Converter Test Data Set – UCC

Date 2021-05
Author(s) Lyden Eoin1, Judge FrancesORCID1, O'Shea MichaelORCID1, Thiebaut Florent2
Affiliation(s) 1 : MaREI Centre, Environmental Research Institute, University College Cork, Ireland
2 : Ecole Centrale de Nantes, France
DOI 10.17882/80895
Publisher SEANOE
Abstract

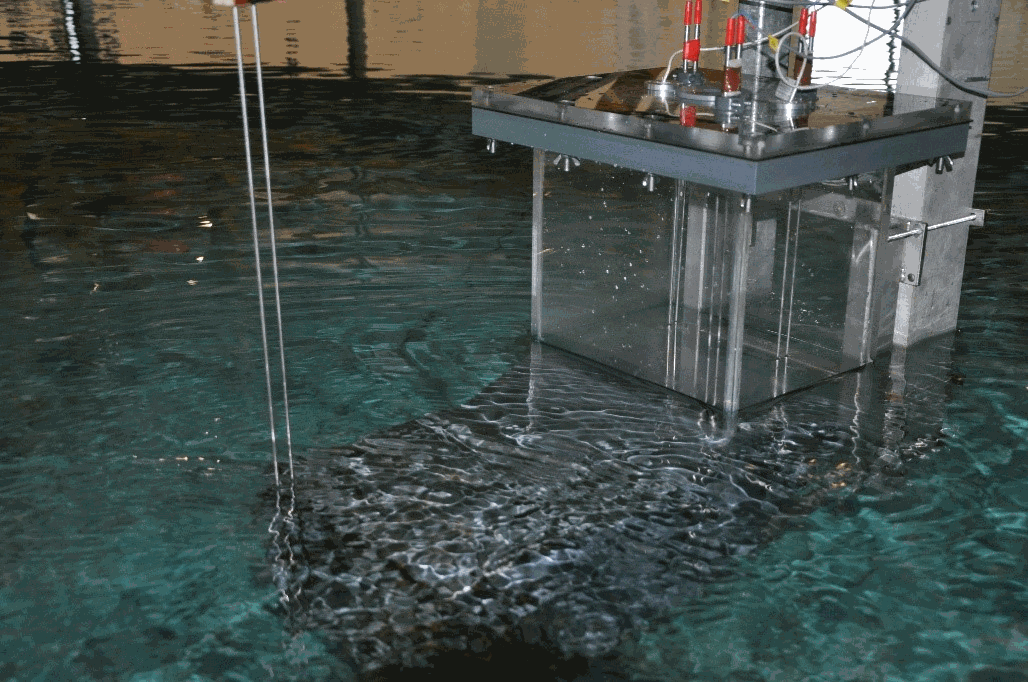

This dataset contains the results from the tank testing in the Lir Ocean basin of a  30th scale fixed OWC scale wave energy device. The results include the pressure and water column oscillations for a series of regular and irregular wave tests. The recorded incident waves are also provided. This dataset forms part of a larger round robin campaign whereby this device was tested in 2 other facilities namely Ecole Central Nantes and the University of Plymouth.

The paper available at https://doi.org/10.1115/1.4051164 uses some of, and explains further, the data.

Licence CC-BY-NC
Utilisation Data are published without any warranty, express or implied. The user assumes all risk arising from his/her use of data. Data are intended to be research-quality and include estimates of data quality and accuracy, but it is possible that these estimates or the data themselves contain errors. It is the sole responsibility of the user to assess if the data are appropriate for his/her use, and to interpret the data, data quality, and data accuracy accordingly. Authors welcome users to ask questions and report problems.
Acknowledgements This research was funded by European Union’s Horizon 2020 research and innovation programme under grant agreement number 731084, project MaRINET2 (Marine Renewable Infrastructure Network for Enhancing Technologies 2)
Sensor metadata

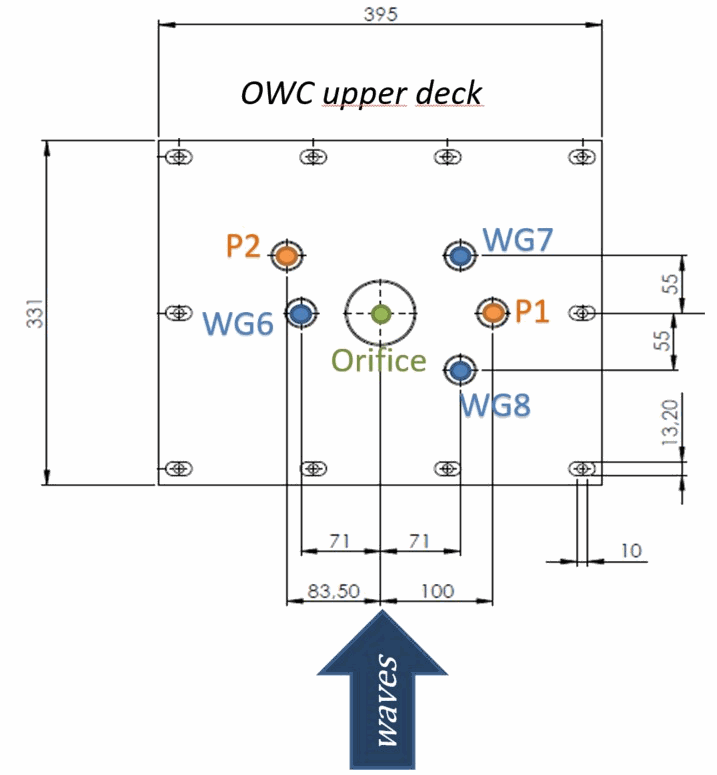

Figure : Sensor layout

Data
File Size Format Processing Access
Test plan 77 KB XLS, XLSX Open access
Data files 292 MB TXT, Matlab Quality controlled data Open access
Top of the page

How to cite

Lyden Eoin, Judge Frances, O'Shea Michael, Thiebaut Florent (2021). Marinet 2 Fixed Oscillating Water Column Wave Energy Converter Test Data Set – UCC. SEANOE. https://doi.org/10.17882/80895


In addition to properly cite this dataset, it would be appreciated that the following work(s) be cited too, when using this dataset in a publication :


Judge Frances M., Lyden Eoin, O'Shea Michael, Flannery Brian, Murphy Jimmy (2021). Uncertainty in Wave Basin Testing of a Fixed Oscillating Water Column Wave Energy Converter. ASCE-ASME J Risk and Uncert in Engrg Sys Part B Mech Engrg, -. https://doi.org/10.1115/1.4051164
