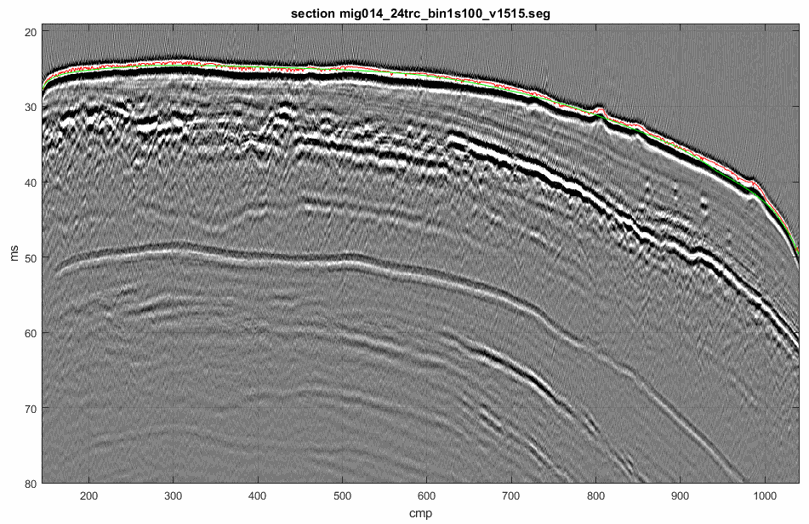

Time-migrated seismic reflection profile ST5-014

Date 2015-04-26
Author(s) Thomas Yannick1, Marsset BrunoORCID1, Dupont Pauline1, Hamon Mathieu2, Garziglia SebastienORCID1
Author(s) Marine Geosciences
Affiliation(s) 1 : IFREMER
2 : SHOM
DOI 10.17882/82986
Publisher SEANOE
Keyword(s) Seismic reflection profile, Time-migration
Abstract

Seismic profile ST5-014 was acquired in May 2015 during the STEP 2015 cruise (DOI:10.17600/15006100) on the continental shelf offshore Nice Airport (SE France).

The source was a 1200 J Sparker from Geo Marine Survey with electrical pulse on a 400 tip electrode. The seismic data were recorded on a Geo-sense 48-channel streamer of 230 m long with a trace spacing of 3.125 m which was towed at a depth of 0.6 m. One Automatic Identification System was deployed on the seismic source and two others on the head and tail of the streamer to ensure positioning with meter accuracy.

The pre-processing of the seismic data included common midpoint binning, spherical divergence correction, 125-2500 Hz bandpass filtering, normal moveout correction and signature deconvolution. To preserve the high frequency content of the source only the first 24 traces were stacked (i.e. maximum offset of 80 m). This provided seismic data with a frequency range of 175 to 850 Hz. Detailed Root Mean Square velocity analyses were performed on super gathers every 1 m. After the picking of velocities on semblance panels, interval velocities were computed using the Dix equation. Stack and post-stack time migration were then applied using this velocity field.

The time-migrated seismic data were converted to standard SEG-Y rev1 format (https://seg.org/Portals/0/SEG/News%20and%20Resources/Technical%20Standards/seg_y_rev1.pdf) with values written using “big-endian” byte ordering and IEEE floating-point. Seismic coordinates in trace headers are in WGS84 format and +DDDMMSS.ss unit (with a scale factor of -100).

Licence CC-BY
Utilisation Data are intended to be research-quality and include estimates of data quality and accuracy, but it is possible that these estimates or the data themselves contain errors. It is the sole responsibility of the user to assess if the data are appropriate for his/her use, and to interpret the data, data quality, and data accuracy accordingly. Authors welcome users to ask questions and report problems.
Acknowledgements The seismic survey during which data was acquired was supported by the "Laboratoire d'Excellence" LabexMER (ANR-10-LABX-19) and co-funded by a grant from the French government under the program "Investissements d'Avenir".
Sensor metadata
Data
File Size Format Processing Access
Time-migrated seismic reflection profile ST5-014 crossing the continental shelf offshore Nice Airport 10 MB SEG Y Processed data Open access
Top of the page

How to cite

Thomas Yannick, Marsset Bruno, Dupont Pauline, Hamon Mathieu, Garziglia Sebastien (2015). Time-migrated seismic reflection profile ST5-014. SEANOE. https://doi.org/10.17882/82986
