ADCP data collected during the iMAR 2021/Eurofleets+ research cruise in Mid Atlantic Ridge (Azores EEZ)

Date 2022-05-02
Temporal extent 2021-05-19 -2021-06-02
Author(s) Mohn ChristianORCID4, Rodrigues LuísORCID1, Dominguez-Carrió CarlosORCID1, Taranto Gerald H.ORCID1, Neves De Sousa Laura2, Evans SusanORCID3, Carreiro-Silva MarinaORCID1, Morato TelmoORCID1
Affiliation(s) 1 : Universidade dos Açores, Okeanos, Portugal
2 : Instituto Hidrográfico, Portugal
3 : National Oceanography Center, United Kingdom
4 : Aarhus University, Department of Ecoscience - Applied Marine Ecology and Modelling, Denmark
DOI 10.17882/86019
Publisher SEANOE
Keyword(s) Mid-Atlantic Ridge, Azores, Deep-sea, iMAR 2021, Eurofleets, ADCP, Acoustic

This dataset was produced during the iMAR cruise “The Integrated assessment of the distribution of Vulnerable Marine Ecosystem along the Mid-Atlantic Ridge (MAR) in the Azores region”, that took place aboard the Research Vessel Pelagia of the Royal Netherlands Institute for Sea Research between May 19th and June 2nd 2021. The iMAR cruise aimed to evaluate the role of the MAR in shaping latitudinal and trans-Atlantic patterns in deep-sea biogeography, connectivity and assemblages of deep-sea megafauna. This expedition was funded by the SEA OCEANS program of Eurofleets+ and the H2020 European project iAtlantic, and was led by the University of the Azores (Portugal) in collaboration with the Hydrographic Institute and University of Porto (Portugal), the University of Aarhus (Denmark), the National Oceanography Center (United Kingdom), GEOMAR (Germany), the University Museum of Bergen (Norway), the PP Shirshov Institute of Oceanology (Russia), and the University of Vale do Itajaí (Brazil).

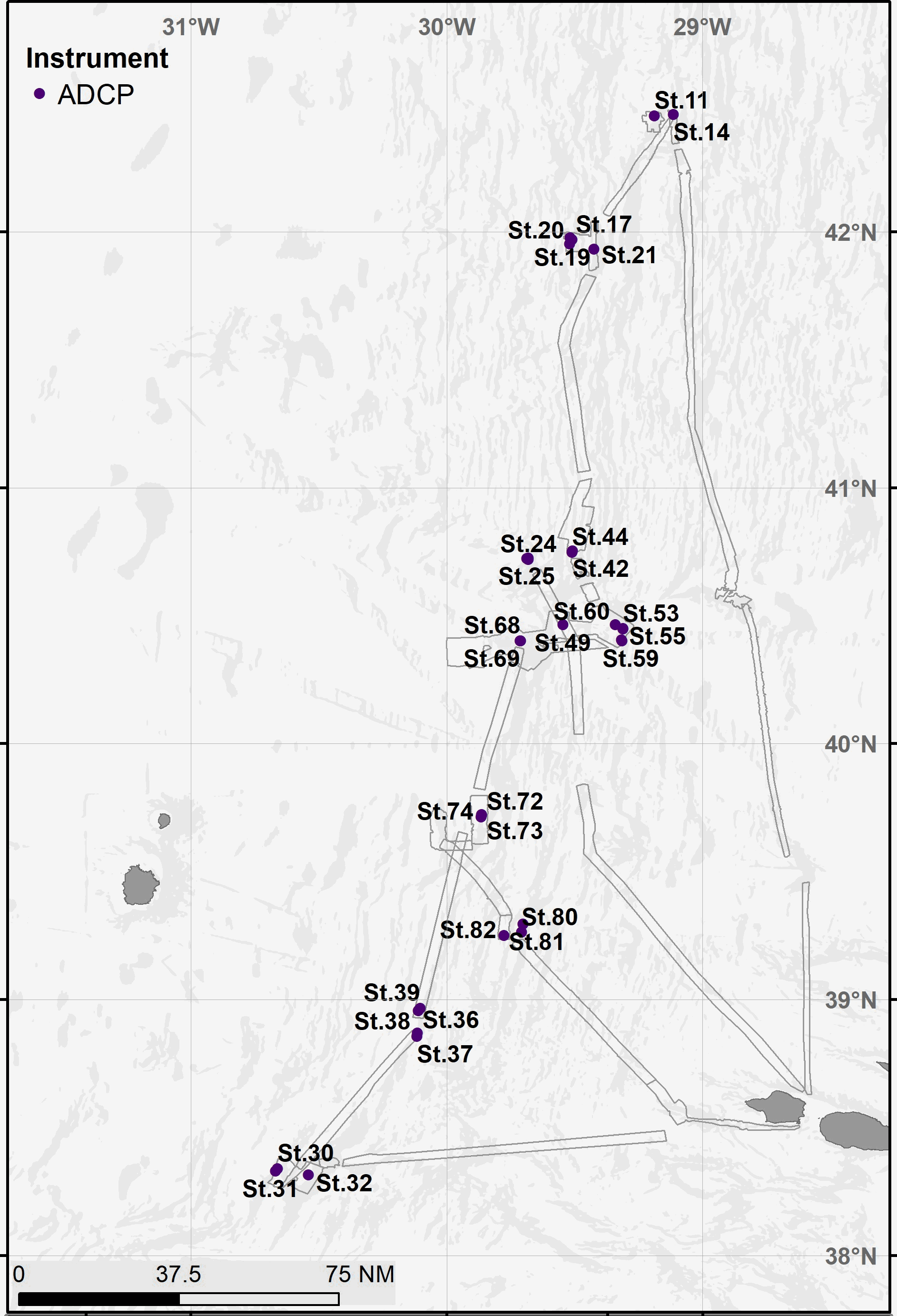

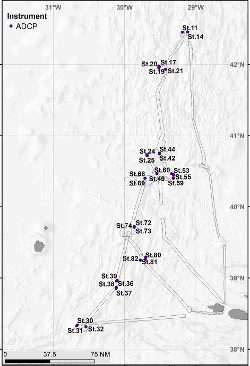

ADCP data was collected at 34 stations during the iMAR cruise, mainly in the North portion of the MAR in the EEZ around the Azores (Table 1). This dataset contain the “.ENR” and another 9 file types with the same name structure but different extensions (.ENS; .ENX; .TXT; .LTA; .N1R; .N2R; .NMS; .STA; .VMO). VmDas Quick Start Guide: “.ENR” raw ADCP data file; “.ENS” ADCP data after having been screened for RSSI and correlation by VmDas; “.ENX” ADCP single-ping data (plus NAV) after having been bin-mapped, transformed to Earth coordinates, and screened for error velocity, vertical velocity, and false targets. “.LTA” ADCP (plus NAV) data that has been averaged using the long time period; “.N1R” and “.N2R” Raw NMEA data files; includes ADCP time stamps; “.N1R” extension is used for single-port NMEA data collection, or for GPS position data (Nav) in dual-port collection mode. The “.N2R” extension is used for Roll/Pitch/Heading (RPH) data collection when using two serial ports for NMEA data collection. “.NMS” Binary format NAV data file after having been screened and pre-averaged. “.STA” ADCP (plus NAV) data that has been averaged using the short time period; “.VMO” the option settings used for collecting the data (text file).


Licence CC-BY
Acknowledgements This research cruise contributes to the overarching scientific mission statement of the Azores Deep-sea research group at the Okeanos research centre of the University of the Azores: Deepen our understanding of the natural diversity, ecosystem structure, function, connectivity and resilience of deep-sea communities in the Azores EEZ in a changing planet, while informing a sustainable use of natural resources for current and future generations. RV Pelagia ship-time was provided free of charge for the iMAR survey, as part of a project which received funding from the European Union’s H2020 Research & Innovation Programme under grant agreement No. 824077 (EUROFLEETS+). We would like to thank the Royal Netherlands Institute for Sea Research (NIOZ) for making the RV Pelagia available to Eurofleets+ and to our team in particular. The Azores Deep-sea research group is funded by the European Union’s Horizon 2020 (H2020) programme under grant agreement No 678760 (ATLAS), No 689518 (MERCES) and No 818123 (iAtlantic), by the Fundação para a Ciência e Tecnologia (FCT) under the plurennial strategic project (UIDB/05634/2020) granted to Okeanos, the Program Stimulus of Scientific Employment (CCCIND/03345/2020 and CCCIND/03346/2020) and the PhD grant (PD/BD/111953/2015), by the Azores Government and PO2020 Açores under the MapGES (Acores-01-0145-FEDER-000056) and DeepWalls (ACORES-01-0145-FEDER-000124) projects as well as the PhD grant (M3.1.a/F/052/2015). We would like to thank the captain and crew of the RV Pelagia for their committed work during the whole iMAR cruise.
File Size Format Processing Access
65 MB ENR; ENS; ENX; TXT; LTA; N1R; N2R; NMS; STA; VMO Raw data Access on demand until 2023-12-31
93536.csv 4 KB CSV Open access
Top of the page

How to cite

Mohn Christian, Rodrigues Luís, Dominguez-Carrió Carlos, Taranto Gerald H., Neves De Sousa Laura, Evans Susan, Carreiro-Silva Marina, Morato Telmo (2022). ADCP data collected during the iMAR 2021/Eurofleets+ research cruise in Mid Atlantic Ridge (Azores EEZ). SEANOE.
