COSTOF2, technical data from SeaMoN West, node of the EMSO-Azores observatory, 2019-2020

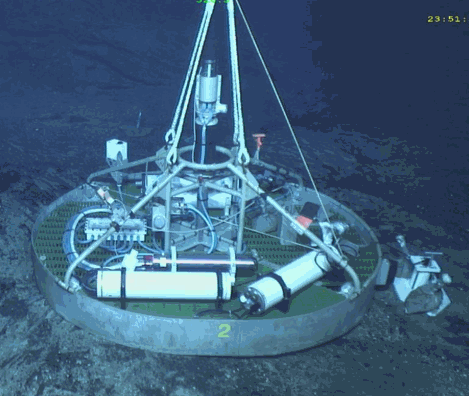

This dataset contains technical parameters (Voltage in V, current in mA, energy in Ah, internal pressure in mbar, water leak detection). This log starts on july 17th 2019, stops on september 13th 2020 and is done by the COSTOF2 (COmmunication and STOrage Front-end). It is the Electronic core of SeaMoN West, the bottom station of EMSO-Azores dedicated to geological observations.

This dataset contains technical parameters (Voltage in V, current in mA, energy in Ah, internal pressure in mbar, water leak detection). This log starts on july 17th 2019, stops on september 13th 2020 and is done by the COSTOF2 (COmmunication and STOrage Front-end). It is the Electronic core of SeaMoN West, the bottom station of EMSO-Azores dedicated to geological observations.

Disciplines

Cross-discipline, Marine geology, Environment, Physical oceanography

Keywords

Mid-Atlantic Ridge, EMSO, Lucky Strike, Time-series, Biological monitoring node, MoMAR, SeaMon West, deep sea, COSTOF

Location

37.291N, 37.291S, -32.279E, -32.279W

Devices

Parameters

  • Time
  • Latitude
  • Longitude
  • Voltage (V)
  • Consumed energy (mAh)
  • Water (leak) detection
  • Separator : Slot 8
  • Slot 8 current (mA)
  • Slot 8 internal temperature
  • Slot 8 Internal pressure
  • Slot 8 SD card free space (bytes)
  • Separator : Slot 9
  • Slot 9 current (mA)
  • Slot 9 internal temperature
  • Slot 9 Internal pressure
  • Slot 9 SD card free space (bytes)
  • Separator : Slot 10
  • Slot 10 current (mA)
  • Slot 10 internal temperature
  • Slot 10 Internal pressure
  • Slot 10 SD card free space (bytes)
  • Separator : Slot 11
  • Slot 11 current (mA)
  • Slot 11 internal temperature
  • Slot 11 Internal pressure
  • Slot 11 SD card free space (bytes)
  • Separator : Slot 15
  • Slot 15 current (mA)
  • Slot 15 internal temperature
  • Slot 15 Internal pressure
  • Slot 15 SD card free space (bytes)

Location

  • Regional node: Emso-Azores
  • Site: Lucky Strike
  • Node: Seamon West
  • Coordinates: 37.291N, -32.279E
  • Depth: 1700 m

Installation

Recovery

  • Cruise: Pierre Marie Sarradin - Ifremer / REM, Julien Legrand - Ifremer /REM - MOMARSAT2020 cruise, N/O Pourquoi Pas ? https://doi.org/10.17600/18000684
  • Dive: september 15, 2020 22:06

Operating parameters

  • Measurement duration: 10 sec
  • Sampling period: 60 minutes

Sensor metadata

  • Type: Communication and Storage Front-end 2
  • Provider: IFREMER
  • Model: COSTOF2, Deep sea
  • Serial number: G3904 sn 001

Data management

  • Real time data transmission: yes
  • Data storage in the Communication and storage unit (COSTOF2): Full

Data

FileSizeFormatProcessingAccess
data
619 KoCSVRaw data
How to cite
Gautier Laurent, Legrand Julien, Sarradin Pierre-Marie, Matabos Marjolaine, Chauvet Adrien, Moreau Bertrand (2023). COSTOF2, technical data from SeaMoN West, node of the EMSO-Azores observatory, 2019-2020. SEANOE. https://doi.org/10.17882/94766
