(2023). COSTOF2, technical data from SeaMoN East, node of the EMSO-Azores observatory, 2021-2022. SEANOE. https://doi.org/10.17882/95045
COSTOF2, technical data from SeaMoN East, node of the EMSO-Azores observatory, 2021-2022
This dataset contains technical parameters (Voltage in V, current in mA, energy in Ah, internal pressure in mbar, water leak detection). This log is done by the COSTOF2 (COmmunication and STOrage Front-end). It is the Electronic core of SeaMoN East, the bottom station of EMSO-Azores dedicated to biological observations.
Biological oceanography, Chemical oceanography, Cross-discipline, Environment, Physical oceanography
Mid-Atlantic Ridge, EMSO, Lucky Strike, Time-series, Biological monitoring node, MoMAR, SeaMon East, deep sea, SMOOVE, COSTOF
37.288N, 37.288S, -32.275E, -32.275W
Parameters
- Time
- Latitude
- Longitude
- Voltage (mV)
- Consumed energy (mAh)
- Water (leak) detection
- Separator : Slot 8
- Slot 8 current (mA)
- Slot 8 internal temperature
- Slot 8 Internal pressure
- Slot 8 SD card free space (bytes)
- Separator : Slot 9
- Slot 9 current (mA)
- Slot 9 internal temperature
- Slot 9 Internal pressure
- Slot 9 SD card free space (bytes)
- Separator : Slot 10
- Slot 10 current (mA)
- Slot 10 internal temperature
- Slot 10 Internal pressure
- Slot 10 SD card free space (bytes)
- Separator : Slot 11
- Slot 11 current (mA)
- Slot 11 internal temperature
- Slot 11 Internal pressure
- Slot 11 SD card free space (bytes)
- Separator : Slot 15
- Slot 15 current (mA)
- Slot 15 internal temperature
- Slot 15 Internal pressure
- Slot 15 SD card free space (bytes)
Location
- Regional node: Emso-Azores
- Site: Lucky Strike
- Node: Seamon East
- Coordinates:37.288N, -32.275E
- Depth: 1700 m

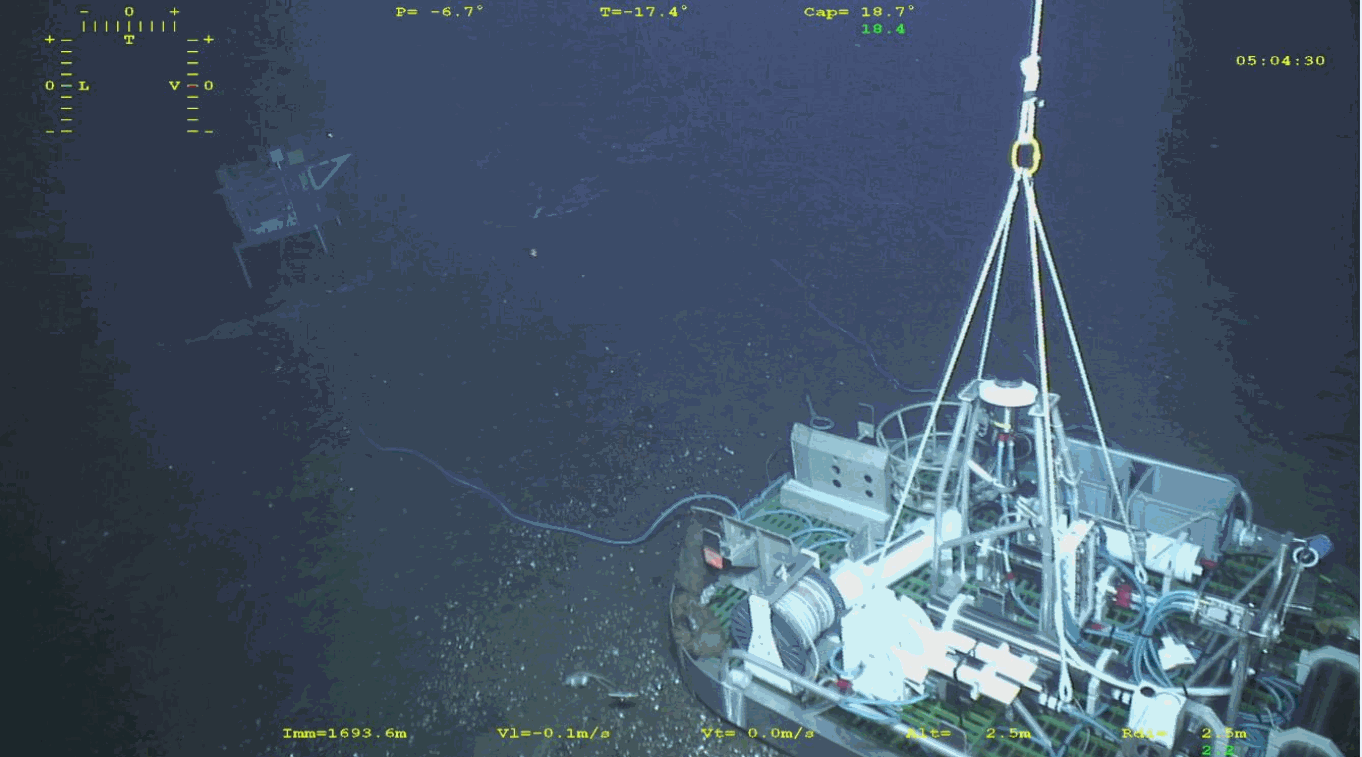

Installation
- Cruise: Marjolaine Matabos – Ifremer /REM, Josée Sarradin Ifremer /REM – MOMARSAT2021 cruise, N/O Atalante, https://doi.org/10.17600/18001296
Recovery
- Cruise : Pierre Marie Sarradin, Marjolaine Matabos – Ifremer / REM. MOMARSAT2022, N/O Pourquoi Pas, https://doi.org/10.17600/18001914
Operating parameters
- Measurement duration: 10 sec
- Sampling period: 240 minutes
Sensor metadata
- Type: Communication and Storage Front-end 2
- Provider: IFREMER
- Model: COSTOF2, Deep sea
Data management
- Real time data transmission: yes
- Data storage in the Communication and storage unit (COSTOF2): Full
