COSTOF2, technical data from BOREL, node of the BOREL buoy, 2022-2023

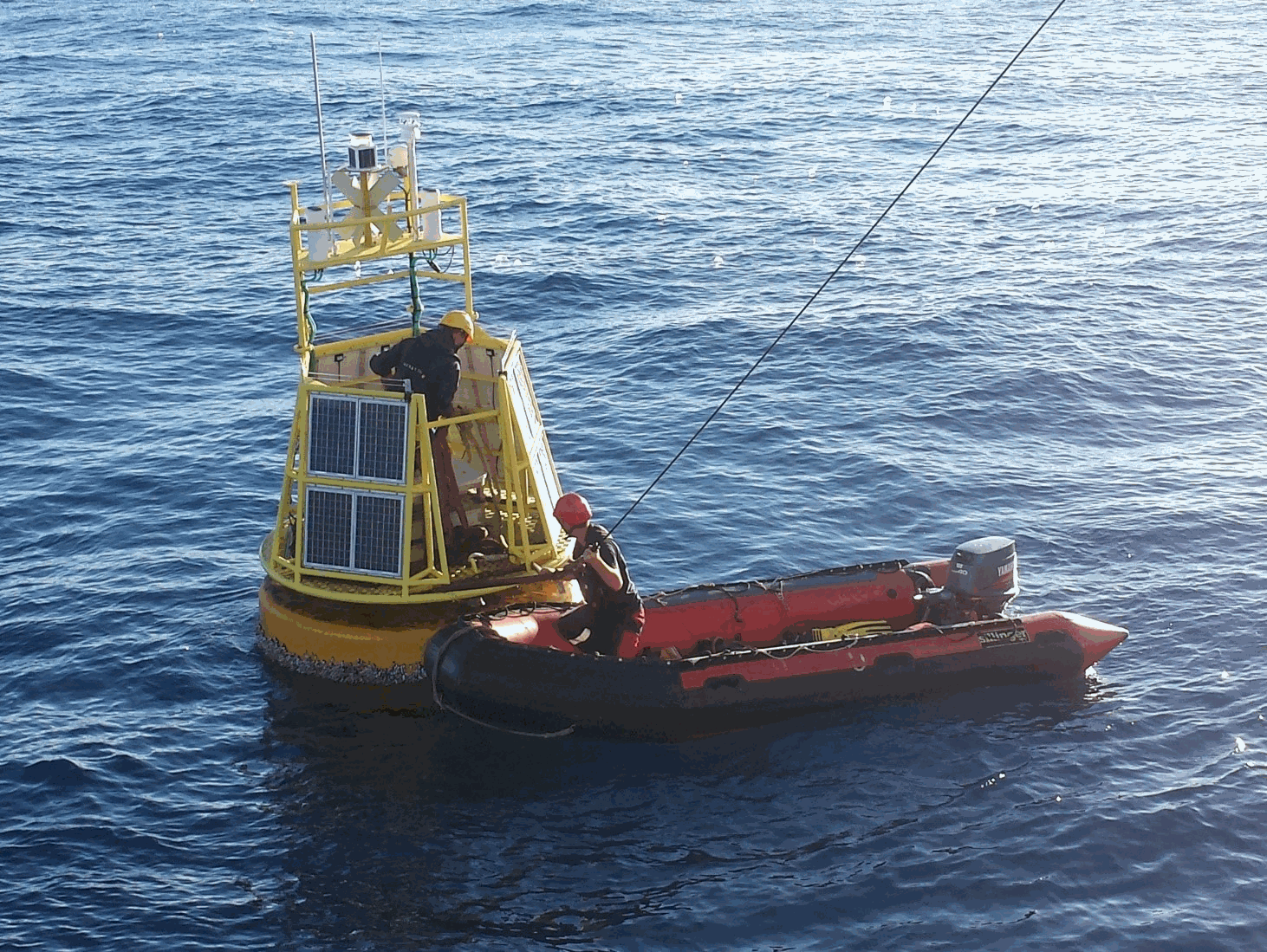

This dataset contains technical parameters (Voltage in V, current in mA, energy in Ah, internal pressure in mbar, water leak detection). This log is done by the COSTOF2 (COmmunication and STOrage Front-end). It is the Electronic core of BOREL the buoy that retrieve the data via satellite communication. It supports a weather station an a high resolution GPS.

Disciplines

Administration and dimensions

Keywords

Mid-Atlantic Ridge, EMSO, Lucky Strike, Time-series, Biological monitoring node, MoMAR, BOREL, COSTOF

Location

37.301N, 37.301S, -32.278E, -32.278W

Devices

Parameters

Node V1 : Voltage, energy, water leak detection, current consumption, internal temperature and pressure, remaining storage space for each slot ID

  • For each sensor board (that supports up to 3 sensors) : internal temperature, internal pressure, remaining storage
  • Slot ID 8 : airmar WS200
  • Slot ID 9 : Kanaton McMurdon (AIS), Leica GR25

Location

  • Regional node: Emso-Azores
  • Site: Lucky Strike
  • Node: BOREL
  • Coordinates:

Installation

Recovery

Operating parameters

  • Measurement duration: 10 sec
  • Sampling period: 240 minutes

Sensor metadata

  • Type: Communication and Storage Front-end 2
  • Provider: IFREMER
  • Model: COSTOF2, BOREL version

Data management

  • Real time data transmission: yes
  • Data storage in the Communication and storage unit (COSTOF2): Full

Data

FileSizeFormatProcessingAccess
data
220 KoCSVRaw data
How to cite
Gautier Laurent, Chauvet Adrien, Matabos Marjolaine (2023). COSTOF2, technical data from BOREL, node of the BOREL buoy, 2022-2023. SEANOE. https://doi.org/10.17882/96734

Copy this text
