The 2014 Greenland-Portugal GEOVIDE bottle data (GO-SHIP A25 and GEOTRACES GA01)

Date 2020-03
Temporal extent 2014-05-15 -2014-06-30
Author(s) Perez FizORCID1, Treguer PaulORCID2, Branellec PierreORCID3, García-Ibáñez Maribel I.ORCID1, Lherminier PascaleORCID3, Sarthou Géraldine4
Contributor(s) Gallinari Morgane, Le Goff Manon, Grossteffan Emilie, Desprez De Gesincourt Floriane, Carracedo Lidia, Alonso Fernando
Affiliation(s) 1 : Instituto de Investigaciones Marinas (IIM, CSIC), Eduardo Cabello 6, 36208 Vigo, Spain
2 : Univ. Brest, Environmental Sciences Laboratory (LEMAR, UMR 6539) at the European Institute for Marine Studies (IUEM), 29280 Plouzané, France
3 : Ifremer, Univ. Brest, CNRS, IRD, LOPS UMR 6523, IUEM, F-29280, Plouzané, France
4 : CNRS, Environmental Sciences Laboratory (LEMAR, UMR 6539) at the European Institute for Marine Studies (IUEM), 29280 Plouzané, France
DOI 10.17882/54653
Publisher SEANOE
Keyword(s) OVIDE, GEOTRACES, water mass, circulation, CTD, North Atlantic, biogeochemistry, carbon cycle

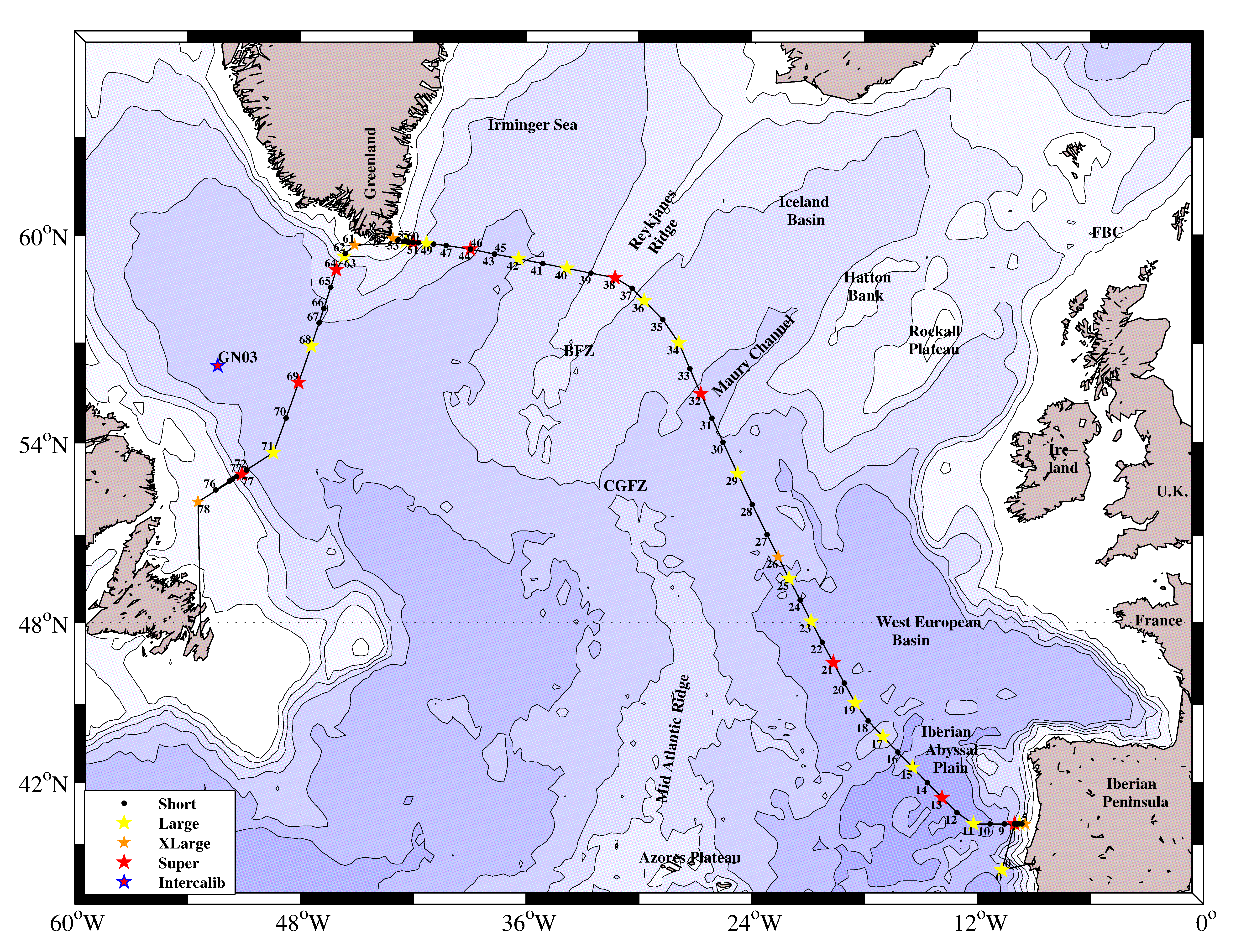

The GEOVIDE cruise was carried out coast to coast between Portugal and Newfoundland via the south tip of Greenland, following the OVIDE line in the eastern part and crossing the Labrador Sea in the western part. The classical hydrographic rosette was cast 163 times at 78 different geographical positions called stations. While the CTD-O2 probe acquired continuous profiles of the “physical” variables (pressure, temperature, salinity and dissolved oxygen), 22 Niskin bottles were closed at different levels during the upcast to provide samples for biogeochemical analysis. After calibration, we find precisions for pressure, temperature, salinity and dissolved oxygen that fit the GO-SHIP international quality requirements. In parallel, but not simultaneously, a trace-metal rosette (TMR) was cast 53 times, also acquiring profiles of physical variables, and equipped with 24 Go-Flo bottles adapted for the sampling of trace metals. Depending on the number of operations, stations were identified as “Short” (one single CTD cast), “Large” (3 CTD casts), “XLarge” (up to 6) and “Super” (up to 11). All along the track of the ship, current magnitude and direction was measured by Ship Acoustic Doppler Current Profilers, down to 1000m depth.

This dataset reports for the classical rosette bottle data for the following Essential Ocean Variables: salinity, dissolved oxygen, total alkalinity, pH, nitrates and silicic acid. It also reports on the measurements of the CTD-O2 probe at the bottle levels: pressure, temperature, salinity and dissolved oxygen.

Licence CC0
Acknowledgements We gratefully acknowledge the crew of the R/V Pourquoi Pas? vessel and her captain Gilles Ferrand for their help and assistance during the cruise.
Sensor metadata
  • Pressure CTD; dbar; Seabird 911+; precision: 1 dbar
  • Temperature CTD; °C; Seabird 911+; precision: 0.001 °C
  • Salinity CTD;; Seabird 911+; precision: 0.0014
  • Oxygen CTD; µ; Seabird 43; precision: 1.2 µ
  • Salinity bottle;; Guildline Portasal salinometer; precision: 0.0014
  • Oxygen bottle; µ; Metrohm 798 titrinos; precision: 0.7 µ
  • pHT25;; Shimadzu UV-2401PC UV-VIS spectrophotometer; precision:  0.003
  • Total alcalinity; µ; Dosino 800 Metrohm potentiometric titrator; 4 µ
  • Silicic acid; µ; precision: 0.1 µ
  • Nitrate;  µ; precision: 0.1 µ


Flags (GLODAP convention):

  • 1 = Bottle information unavailable.
  • 2 = No problems noted.
  • 3 = Questionable.
  • 4 = Bad.
  • 5 = Not reported.
  • 9 = Samples not drawn from this bottle.


File Size Format Processing Access
GEOVIDE bottle data 720 KB XLS, XLSX Processed data Open access
Geovide bottle data - SeaDataNet format 157 KB ODV Quality controlled data Open access
Giovide botlle data - SeaDataNet format 206 KB NC, NetCDF Quality controlled data Open access
Top of the page

How to cite

Perez Fiz, Treguer Paul, Branellec Pierre, García-Ibáñez Maribel I., Lherminier Pascale, Sarthou Géraldine (2020). The 2014 Greenland-Portugal GEOVIDE bottle data (GO-SHIP A25 and GEOTRACES GA01). SEANOE.

In addition to properly cite this dataset, it would be appreciated that the following work(s) be cited too, when using this dataset in a publication :

García-Ibáñez Maribel I., Pérez Fiz F., Lherminier Pascale, Zunino Patricia, Mercier Herlé, Tréguer Paul (2018). Water mass distributions and transports for the 2014 GEOVIDE cruise in the North Atlantic. Biogeosciences, 15(7), 2075-2090.
